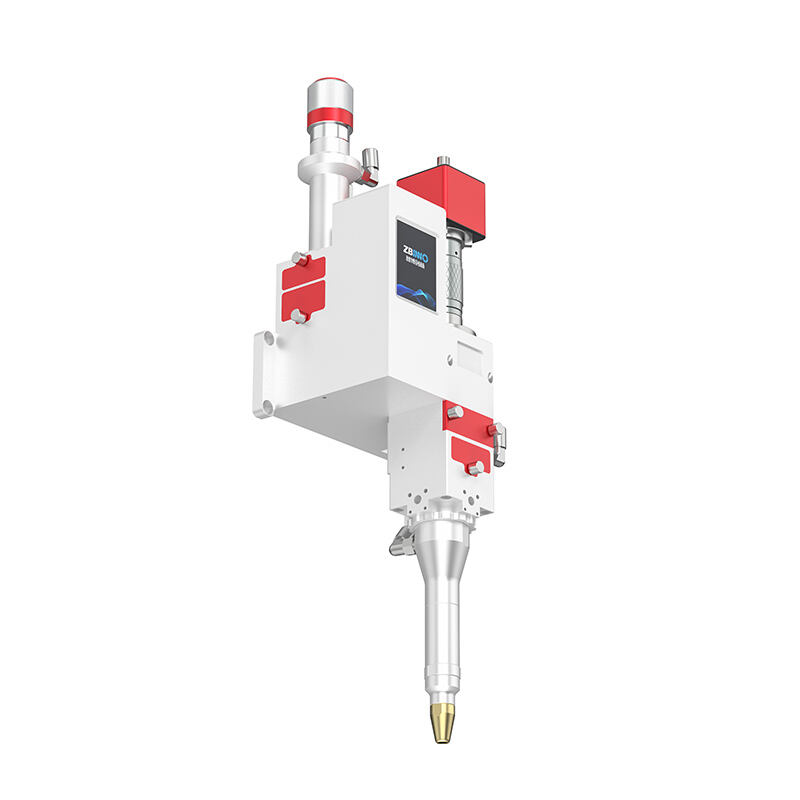

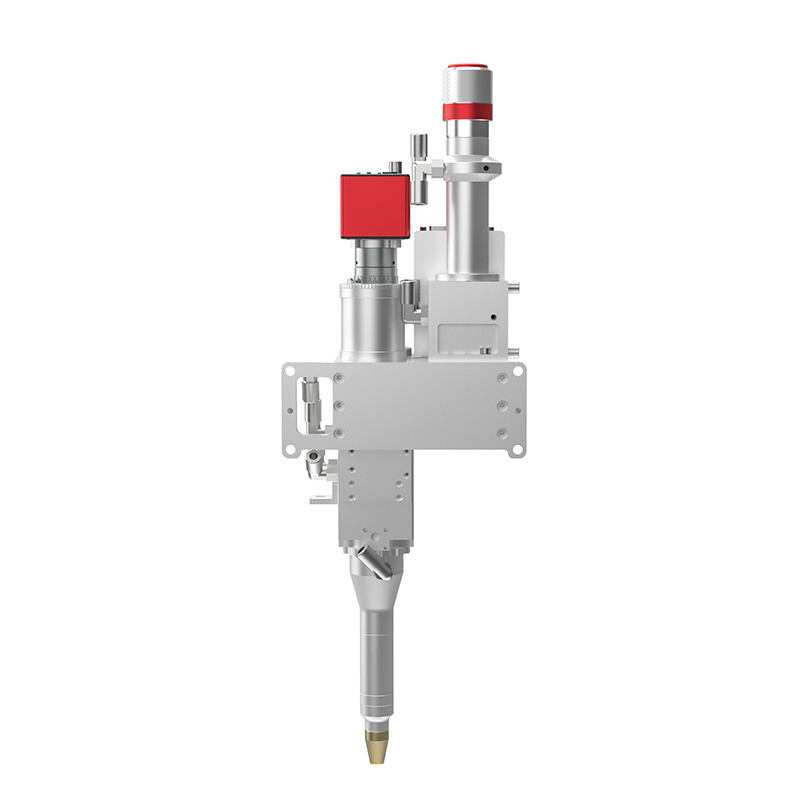

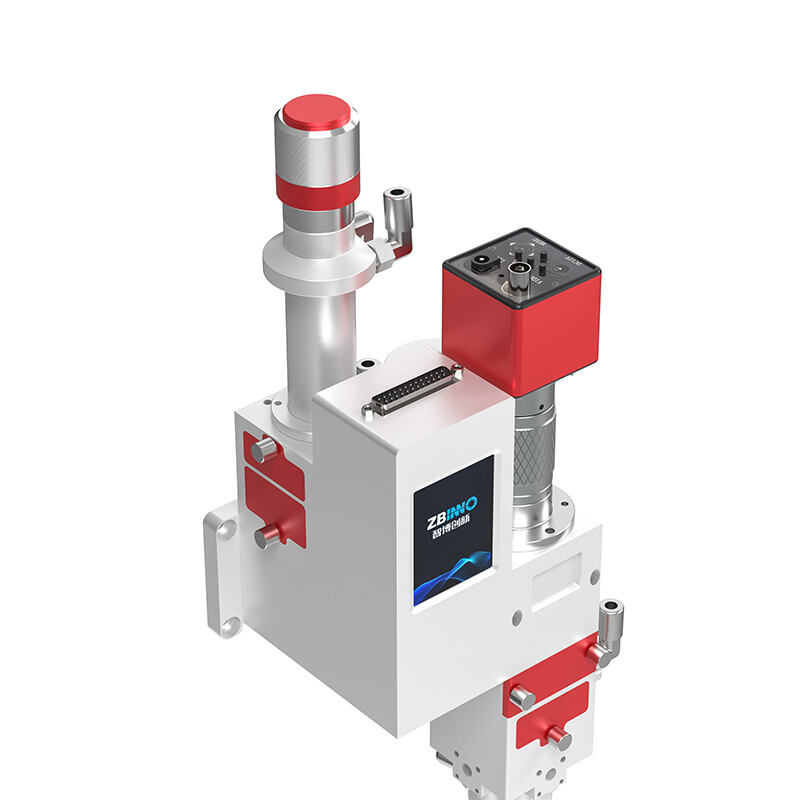

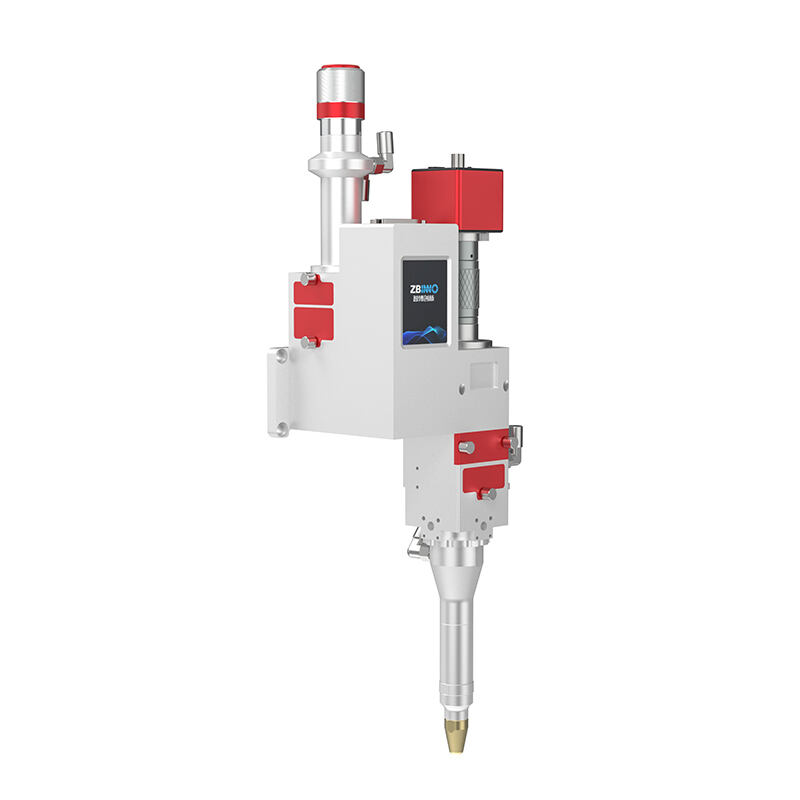

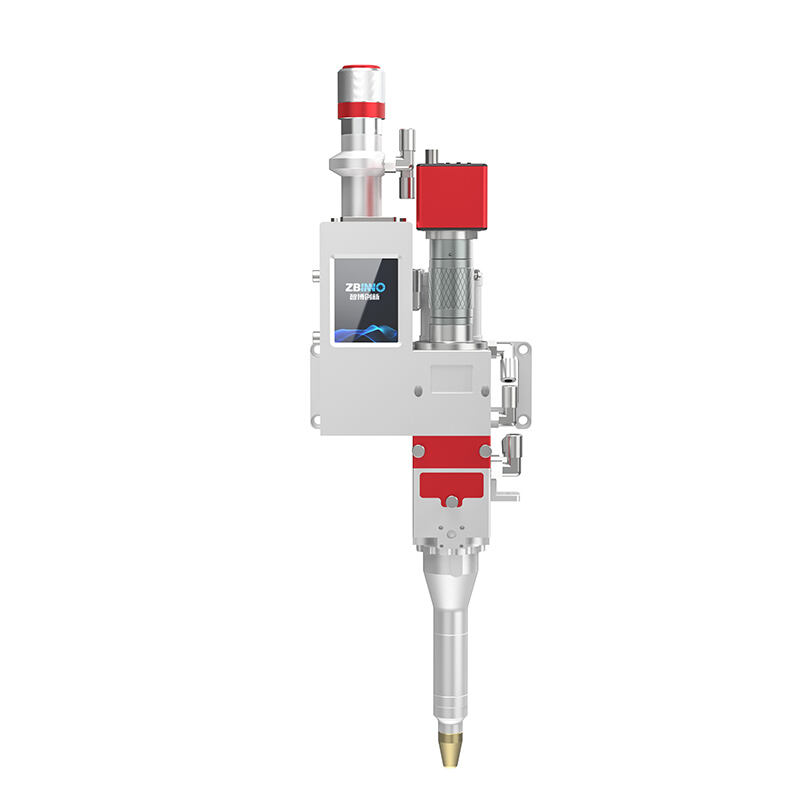

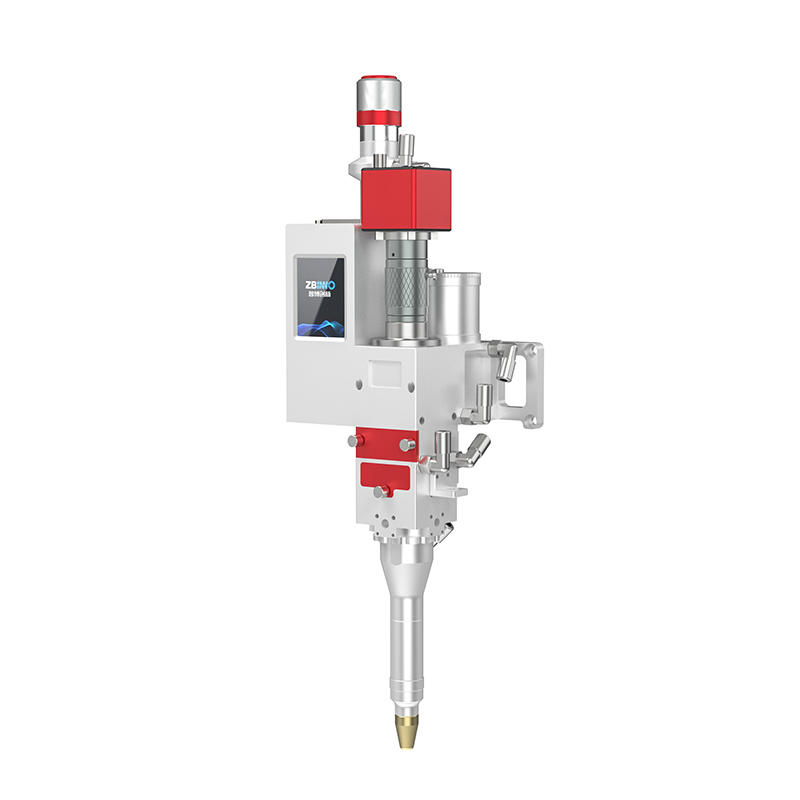

This welding head adopts a new structural design and highly integrated drive control, touch display, temperature control, coaxial lighting, and control modules such as light gates and air gates. It supports annular spot and multi-band lasers (customized). It also supports various industrial buses and programmable IO function modules. It is particularly suitable for laser welding, laser quenching and laser cladding fields with strict requirements on stability, such as unmanned workshops and complex working conditions.
Product advantages
● New design
· New structural design, water path, gas path and optical path are fully optimized.
· It integrates the advantages of compact structure, strong sealing, strong anti-interference and comprehensive functions.
● Light weight
· Comprehensive optimization of the optical path, large aperture.
· High-efficiency water cooling channel.
· Temperature monitoring of core lenses.
· Motor abnormality alarm, undervoltage alarm, etc.
· New generation of adjustable coaxial blue light illumination module
● Powerful feature
· Supports annular spot, and can be customized to be compatible with composite band lasers.
· Modbus RTU bus is standard, and Profi Net/Device Net/ Modbus TCP is optional.
· Dust-proof wind knife, coaxial air blowing, and measured air blowing are available.
· Integrated dynamic power control, air valve control, and programmable pulse direction signal interface.
· Multiple scanning trajectories (customizable).
· Simple PLC logic controller (customizable).
Product Parameters | |
Laser interface |
QBH |
Laser wavelength |
1030nm~1090nm |
Laser power |
≤6000W |
Focusing lens |
D30 F200/F250/F300 |
Collimating lens |
D30 F100/F150/F200 |
Spot diameter of focusing lens |
0.05~1.5 mm |
Cooling method |
Water-cooling |
Gas path |
Support |
Lighting |
Side/coaxial |
Welding width |
≤10 mm |
Swing frequency |
≤500 Hz |
Swing accuracy |
0.01 mm |
Protective gas |
Side blowing /coaxial/Air knife |
Control mode |
Integrated |
Wire |
DB15 |
Anti-interference |
Strong anti-interference |
Hmi |
2.8 inch touch screen |
Laser control |
Supported |
Automation |
Supported |
Swing mode |
Dot/line/circle/rectangle/8/spiral/ring shake |
Observe CCD |
Supported |
Operating temperature |
+15℃ to +35°C |
Storage temperature |
<80% no condensation |
Weight |
3.5Kg |
|
|
