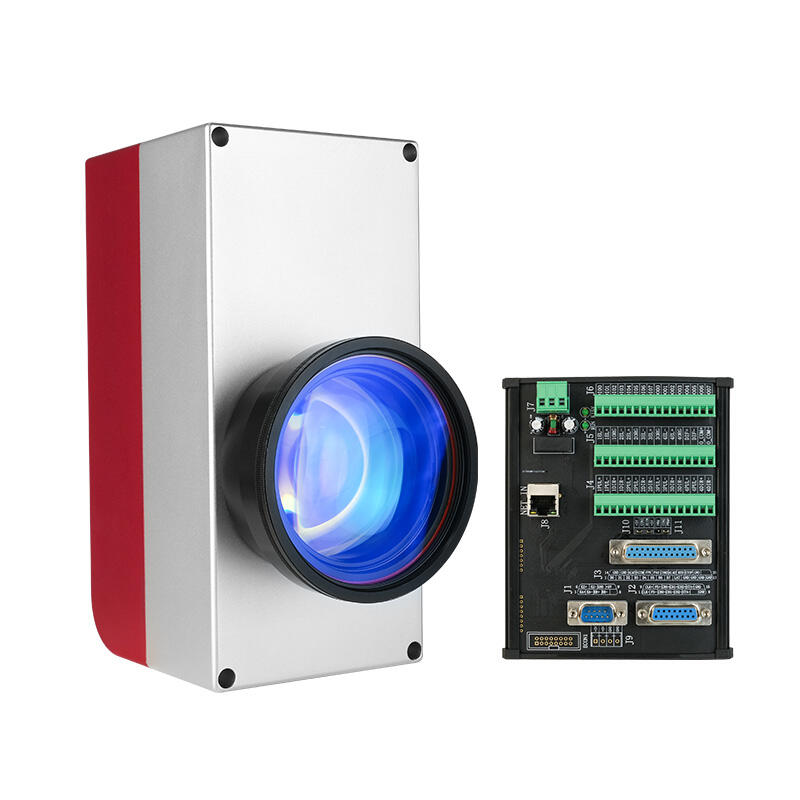

ZBTK glass drilling solution compared with the traditional contact mechanical drilling method, it has the advantages of low processing scrap rate, being able to cut special-shaped holes, fast processing speed, high precision, good stability, flexible processing method, etc. It can replace the traditional glass processing technology and is widely used in panel glass, home appliance glass, display glass, optical glass, photoelectric glass, photovoltaic glass and other industries.
Product advantages
● Integrated design
Highly integrated high-end two-dimensional scanning galvo scanner, high-speed dynamic focusing unit, optical lens group rear focusing F-theta field mirror, etc., compact and stable structure, accurate optical path, good sealing, exquisite appearance, convenient installation.
● High efficiency
Using high-speed scanning galvo scanner and dynamic focusing unit with high response, with special software for glass drilling, the drilling speed is fast and the processing efficiency is high.
● High stability
The metal sealing shielding structure and multistage anti-interference protection circuit have strong anti-interference ability.
● High precision
Advanced closed-loop PID algorithm, 16-bit control resolution, high control precision, fine machining effect.
● Ultra-environmentally friendly
Compared with the traditional water knife processing method, laser 3D glass drilling without waste water discharge, drilling dust particles collection is convenient, very environmentally friendly.
Product Parameters | ||
Applicable laser |
Solid state infrared |
|
Incident spot |
<9mm |
|
Borehole size |
90mm |
|
Glass thickness |
<15mm |
|
Collapse size |
nanosecond：≤200um； picosecond：≤20um； femtosecond：Near collapse free edge |
|
Applicable glass types |
many |
|
Expandable axis |
4-axis |
|
Scan angle |
±0.35rad |
|
Power supply |
±15V/10A |
|
Operating temperature |
25±10(℃) |
|
Weight (kg) |
4.8 |
|
|
||
