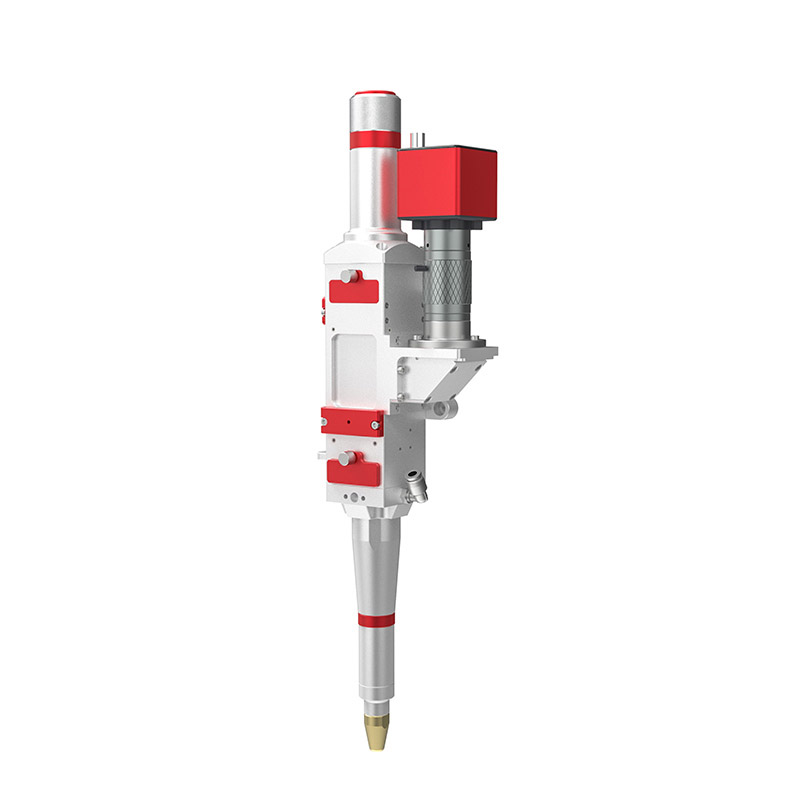

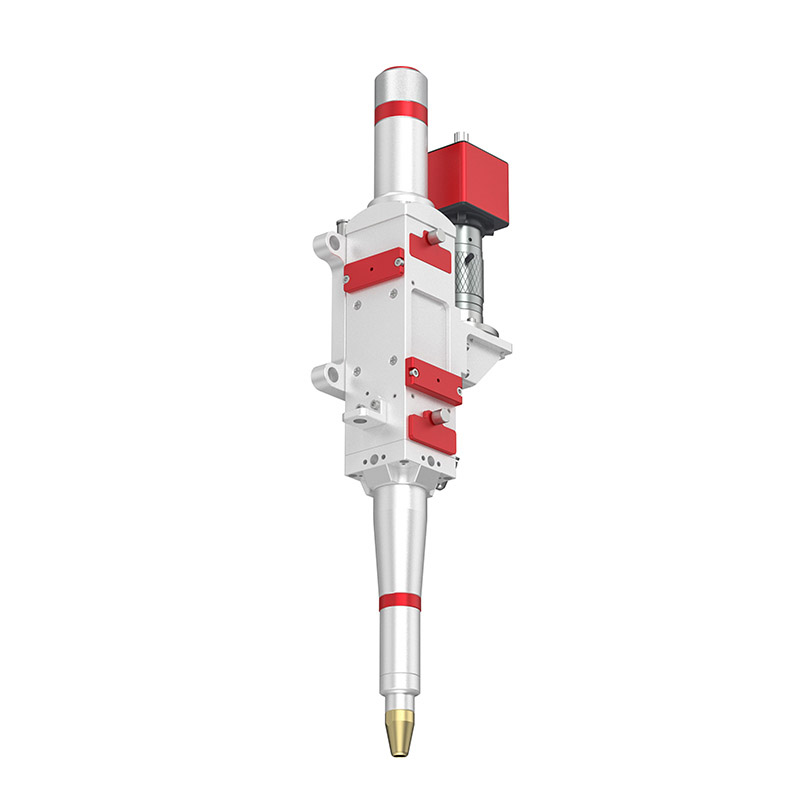

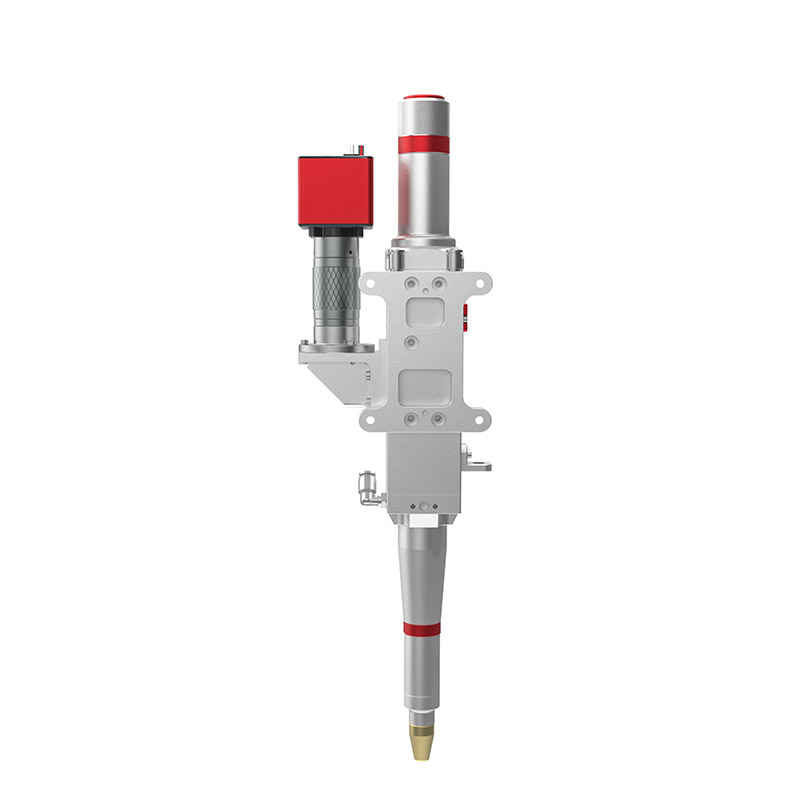

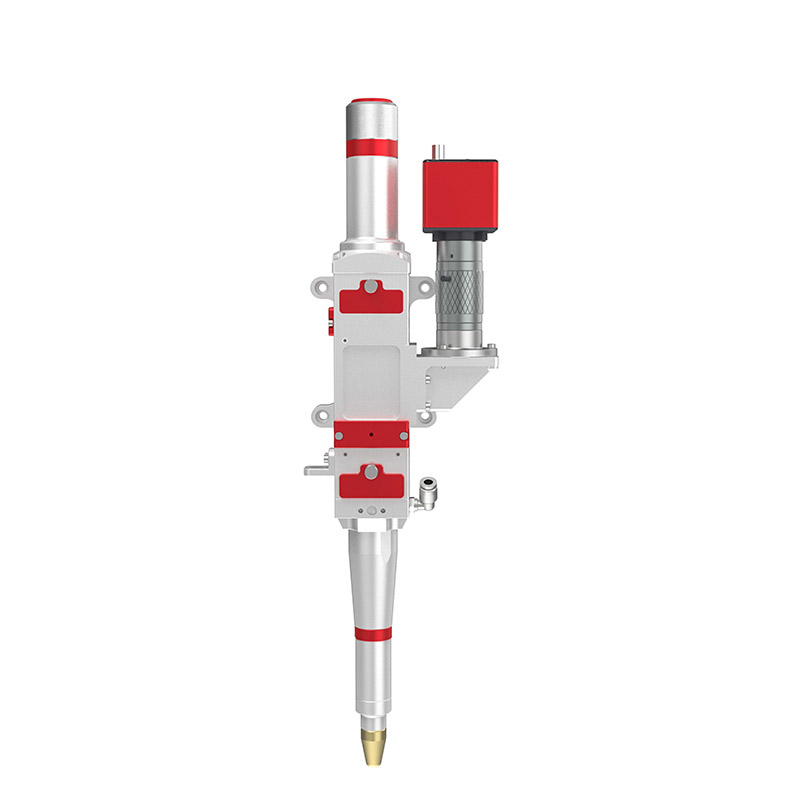

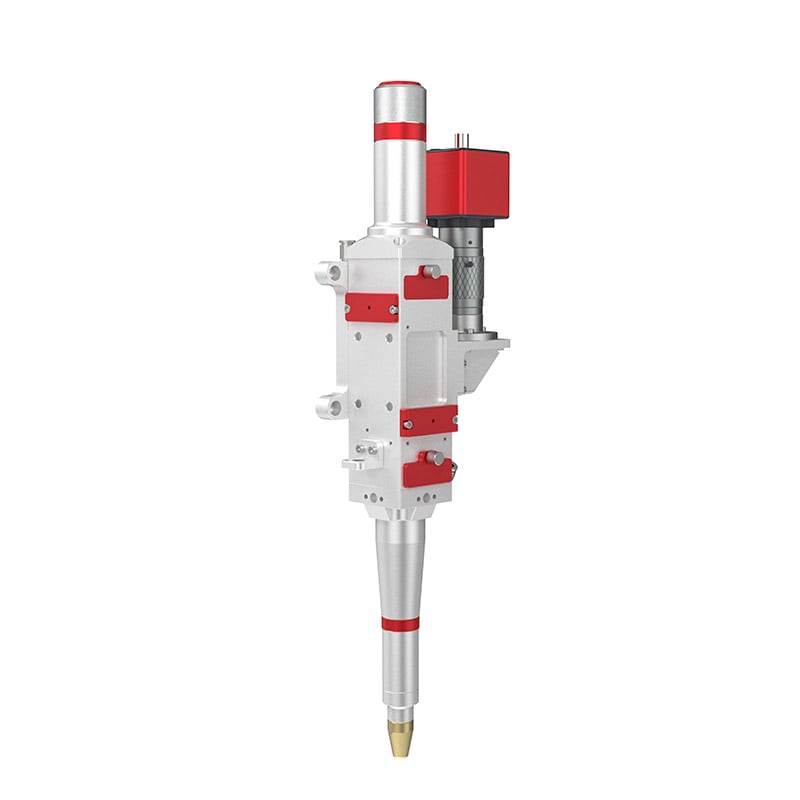

This welding head is a medium-power collimated welding head with extremely high cost performance, which is widely used in thin plate welding in automation scenarios.
Product advantages
● New design
· This welding head adopts a new structural design.
· All core lenses are drawer-type designs, which are easy to maintain.
· Integrates the latest dust-proof design concept.
· Under the condition of a certain aperture, it achieves maximum compatibility with the laser core diameter.welding quality.
● High cost performance
· The optical path structure is simple and easy to install.
· It has both cost-effectiveness and flexibility.
● Flexible configuration
· Flexible collimator and focusing lens ratio.

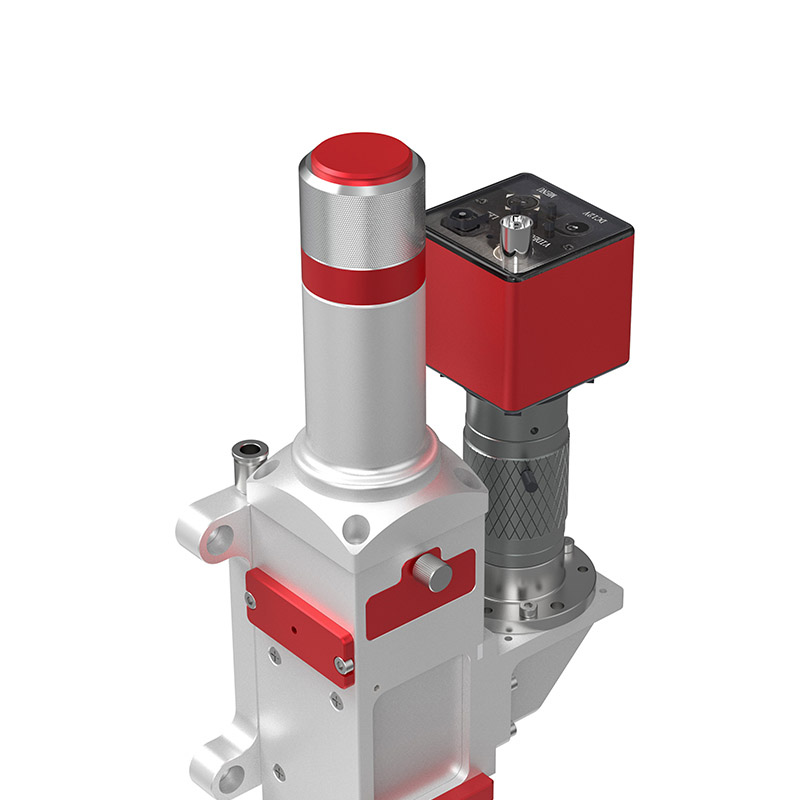

· CCD imaging module is optional, and its installation direction can be interchanged left and right.
· Supports dust-proof air curtain structure and coaxial protective blowing structure.
● High stability
· Pure optical path structure, efficient water cooling circuit, small thermal effect.
· Upper and lower layers of protective lens to protect the core lens.
Product Parameters | |
Laser interface |
QBH |
Laser wavelength |
1030nm~1090nm |
Laser power |
≤3000W |
Focusing lens |
D30 F200/F250/F300 |
Collimating lens |
D30 F100/F120 |
Spot diameter of focusing lens |
0.05~1.5 mm |
Cooling method |
Water-cooling |
Gas path |
Support |
Lighting |
Side |
Welding width |
≤1 mm |
Protective gas |
Side blowing /coaxial/Air knife |
Observe CCD |
Optional |
Operating temperature |
+15℃ to +35°C |
Storage temperature |
< 80% no condensation |
Weight |
2Kg |
|
|
