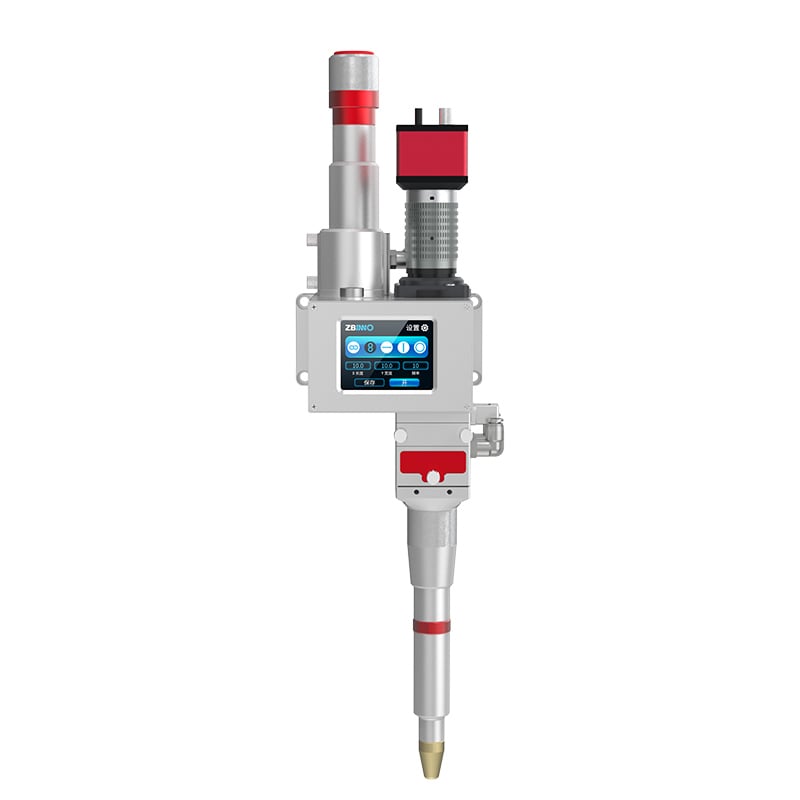

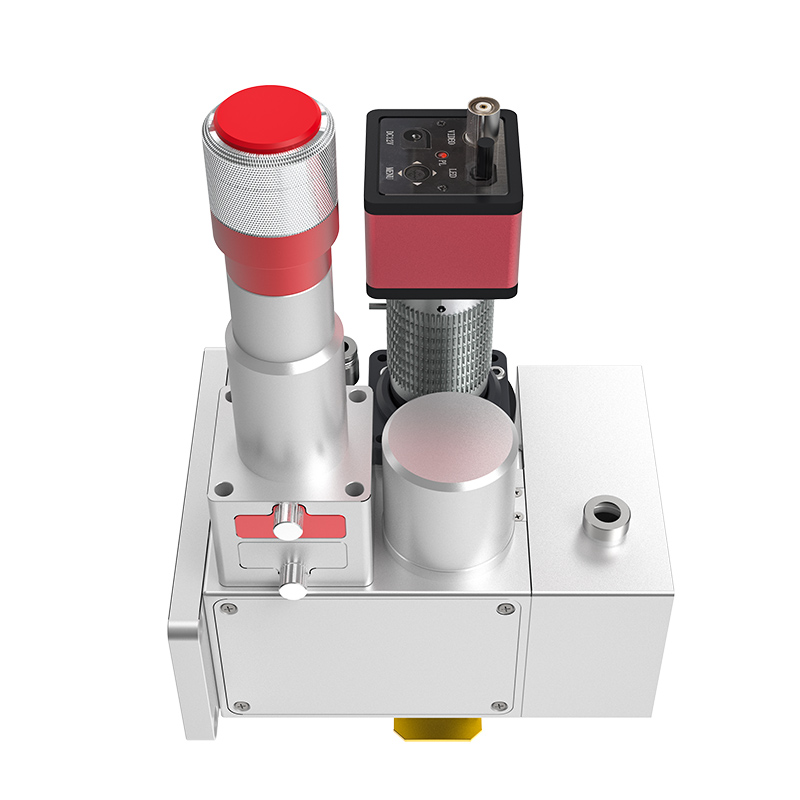

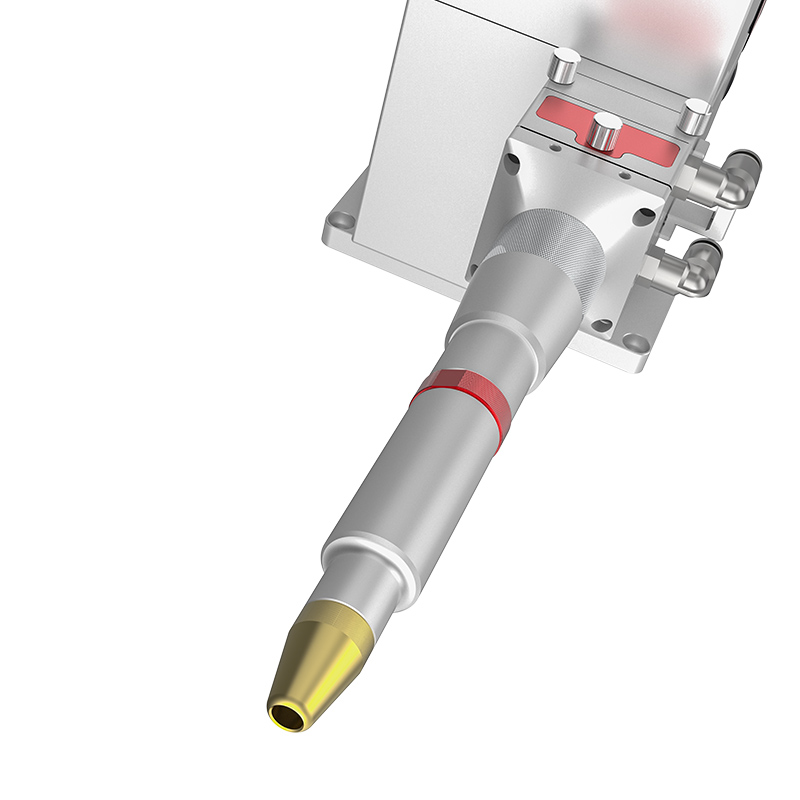

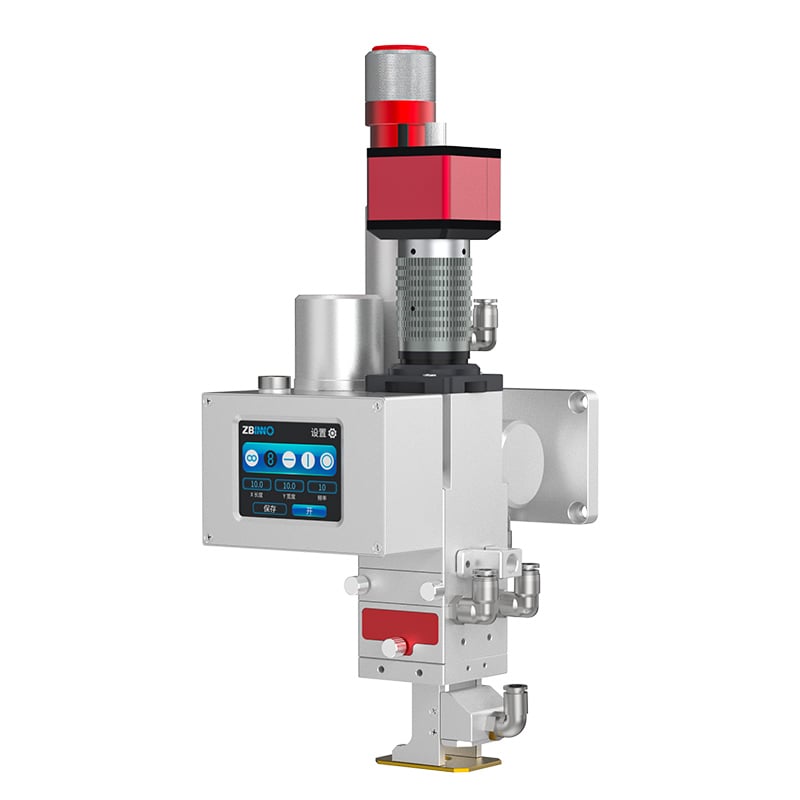

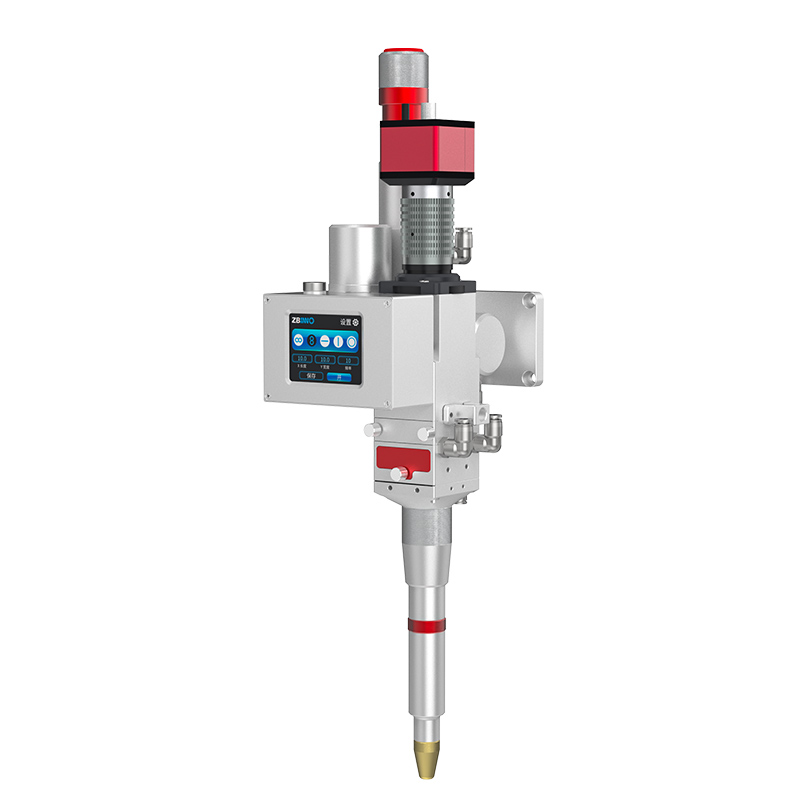

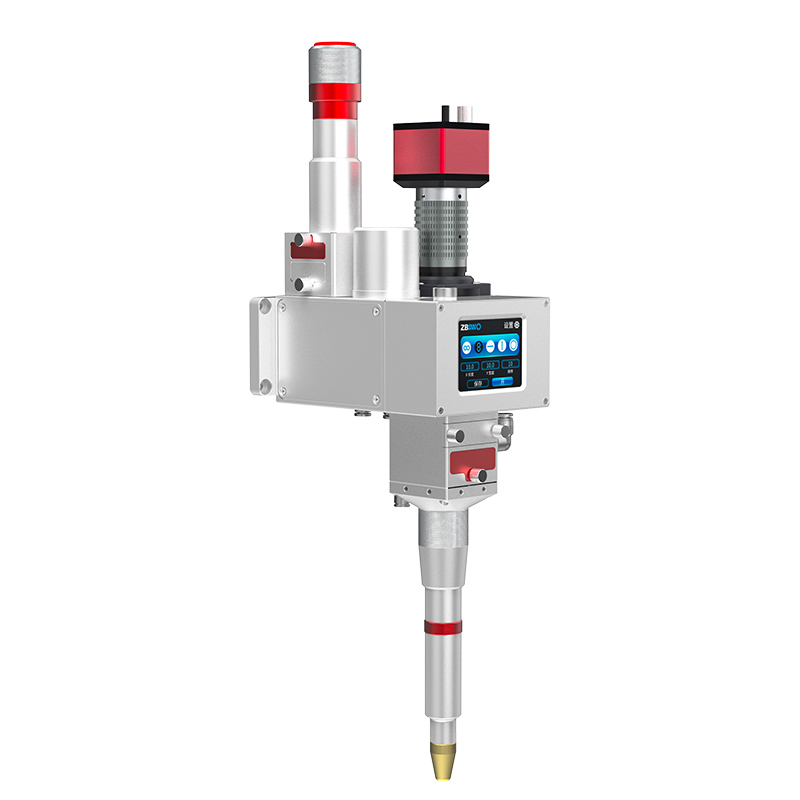

This oscillating welding head is a lightweight 3000W medium-power laser oscillating welding head with integrated drive and control design. It can directly control the oscillating mode, oscillating frequency, and oscillating width of the oscillating head through the screen, maximizing the optimization of the oscillating head's external dimensions and weight, greatly reducing the load on the platform or robotic arm, and reducing the overall cost of the welding equipment.It can be widely used in laser welding, laser quenching, laser cladding, and other processing fields in platform automation or robotic automation scenarios.
Product Parameters | |
Laser interface |
QBH interface |
Laser wavelength |
1030nm~1090nm |
Laser power |
≤3000w |
Focusing lens |
F200/f250/f300 |
Collimating lens |
F75/f100/f125/f150 |
Spot diameter of focusing lens |
≥0.05mm |
Cooling method |
Water-cooling |
Gas path |
Support |
Lighting |
Side/coaxial |
Welding width |
5mm(customization:10mm) |
Swing frequency |
≤1000hz |
Swing accuracy |
0.01mm |
Protective gas |
Side blow /coaxial |
Control mode |
Integrated |
Wire |
Power supply 5P |
Anti-interference |
Strong anti-interference |
Hmi |
Integration |
Laser control |
Not supported |
Automation |
Not supported |
Swing mode |
Dot/line/circle/8 |
Observe CCD |
Support |
Operating temperature |
+15°c to +35°c |
Storage temperature |
<80% no condensation |
Weight |
3Kg |
|
|
