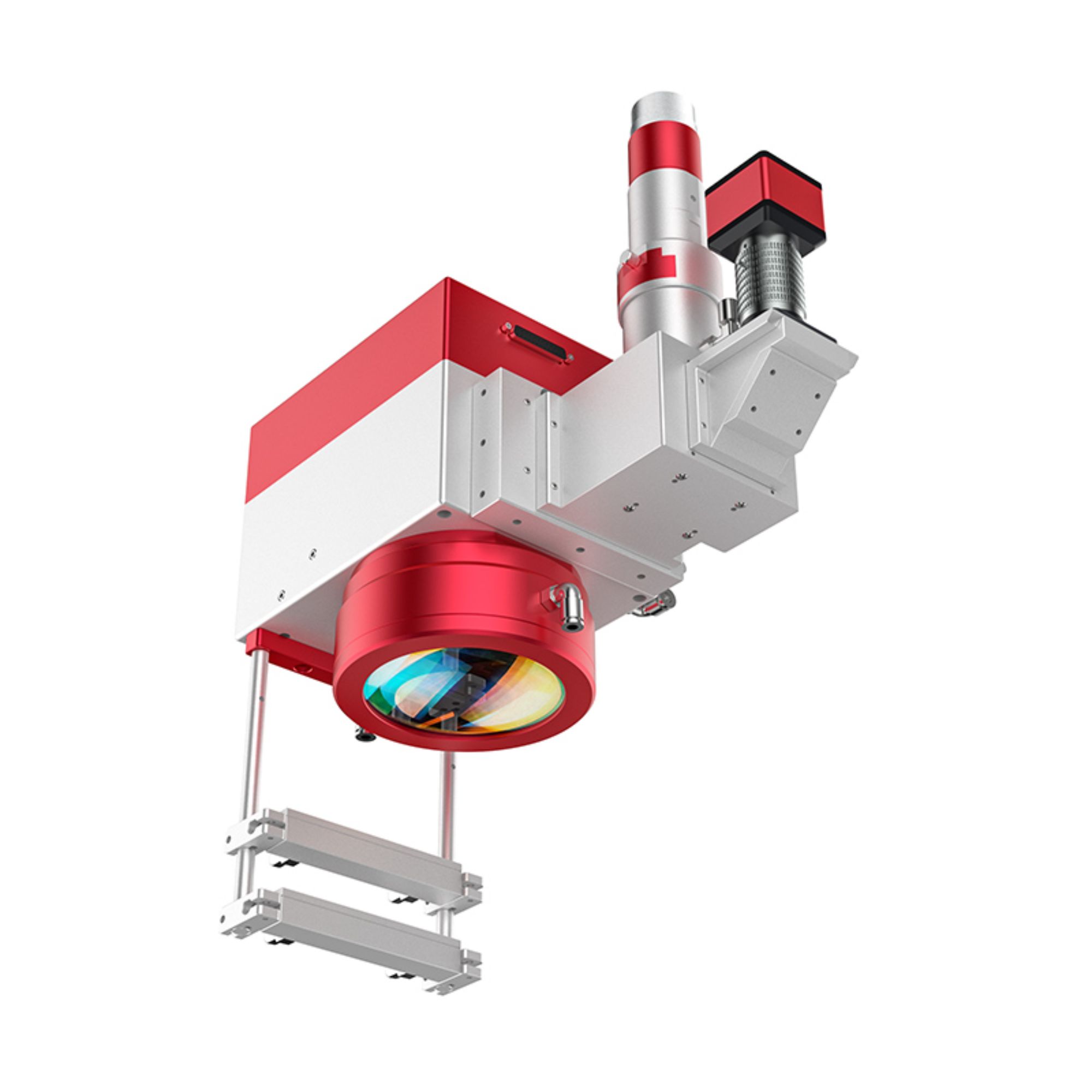

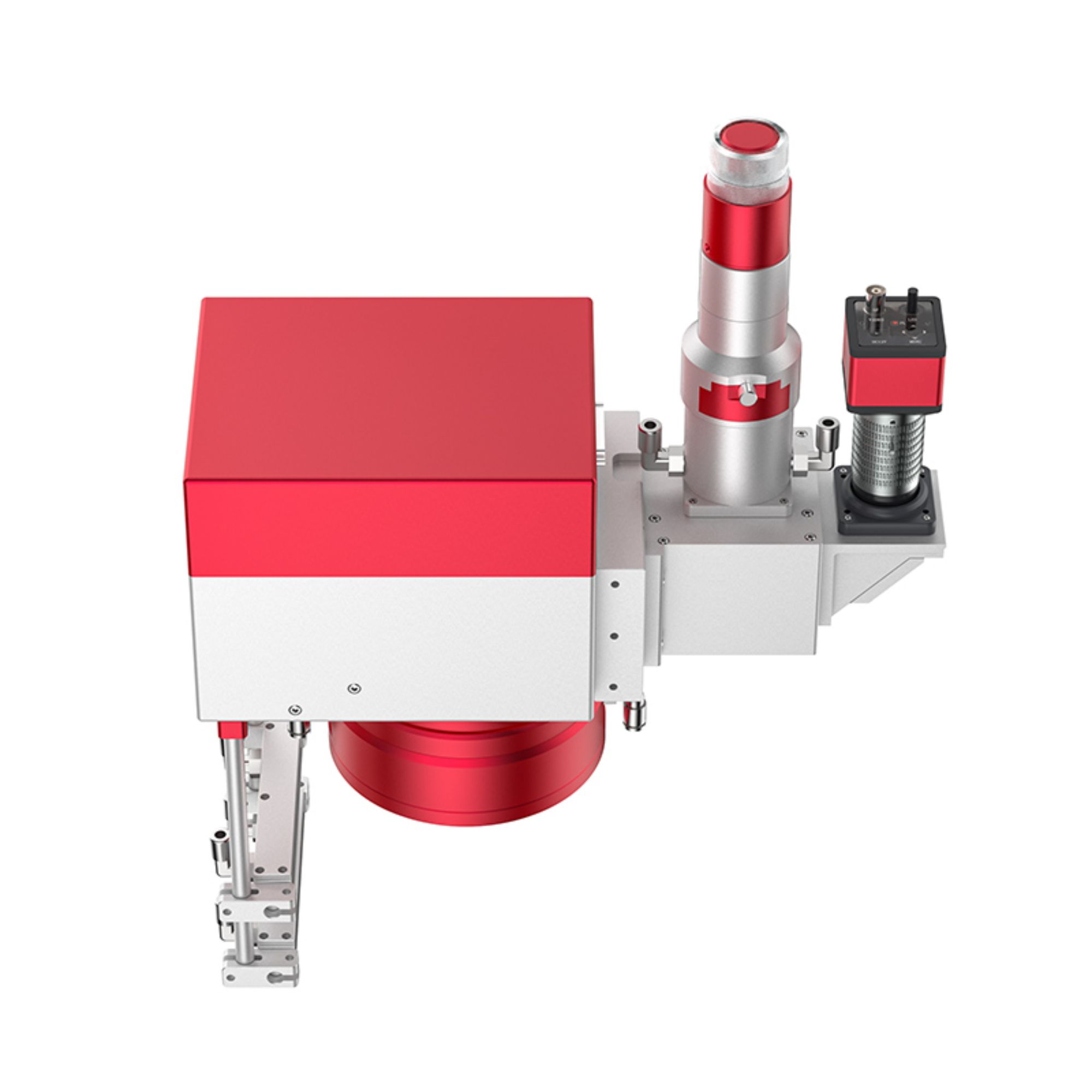

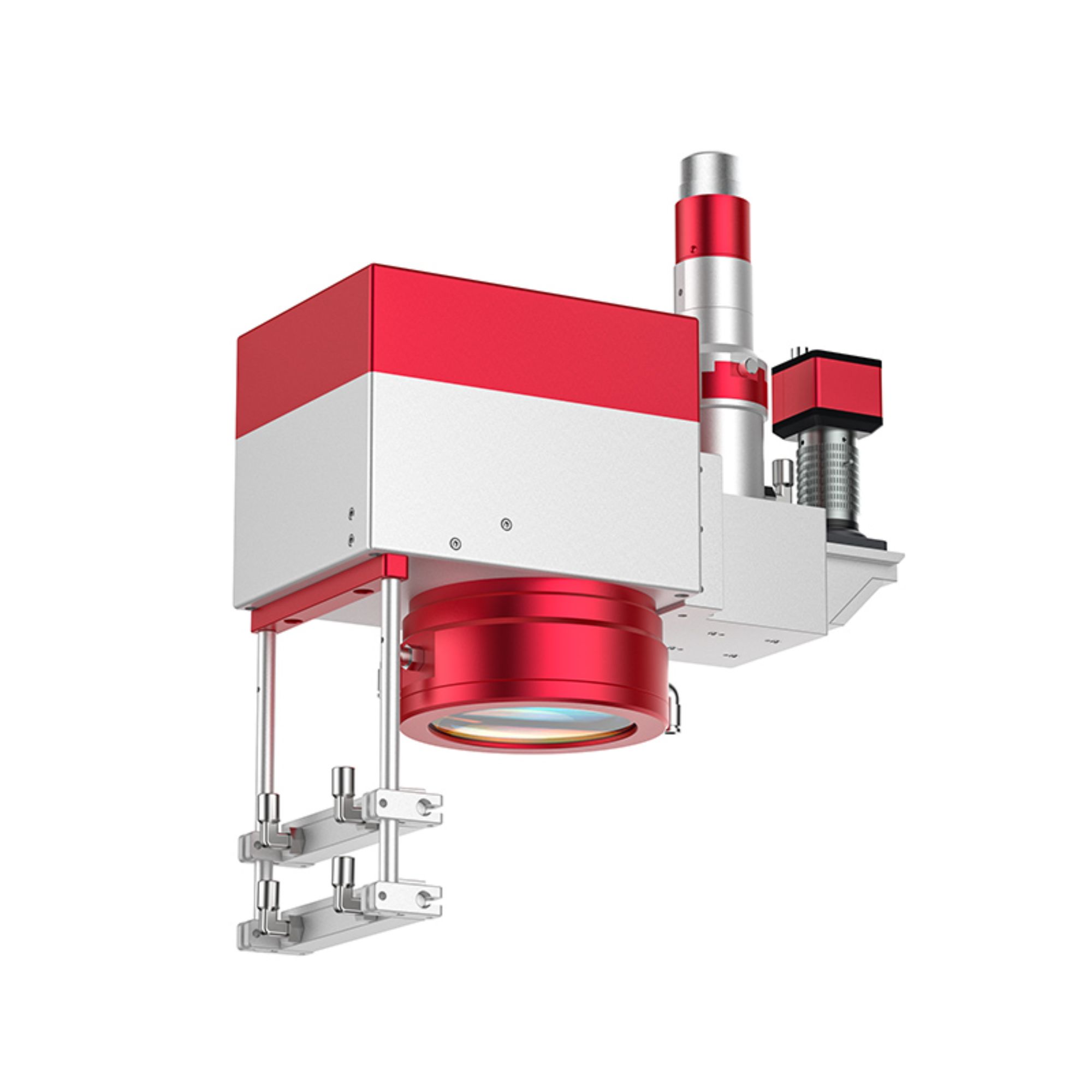

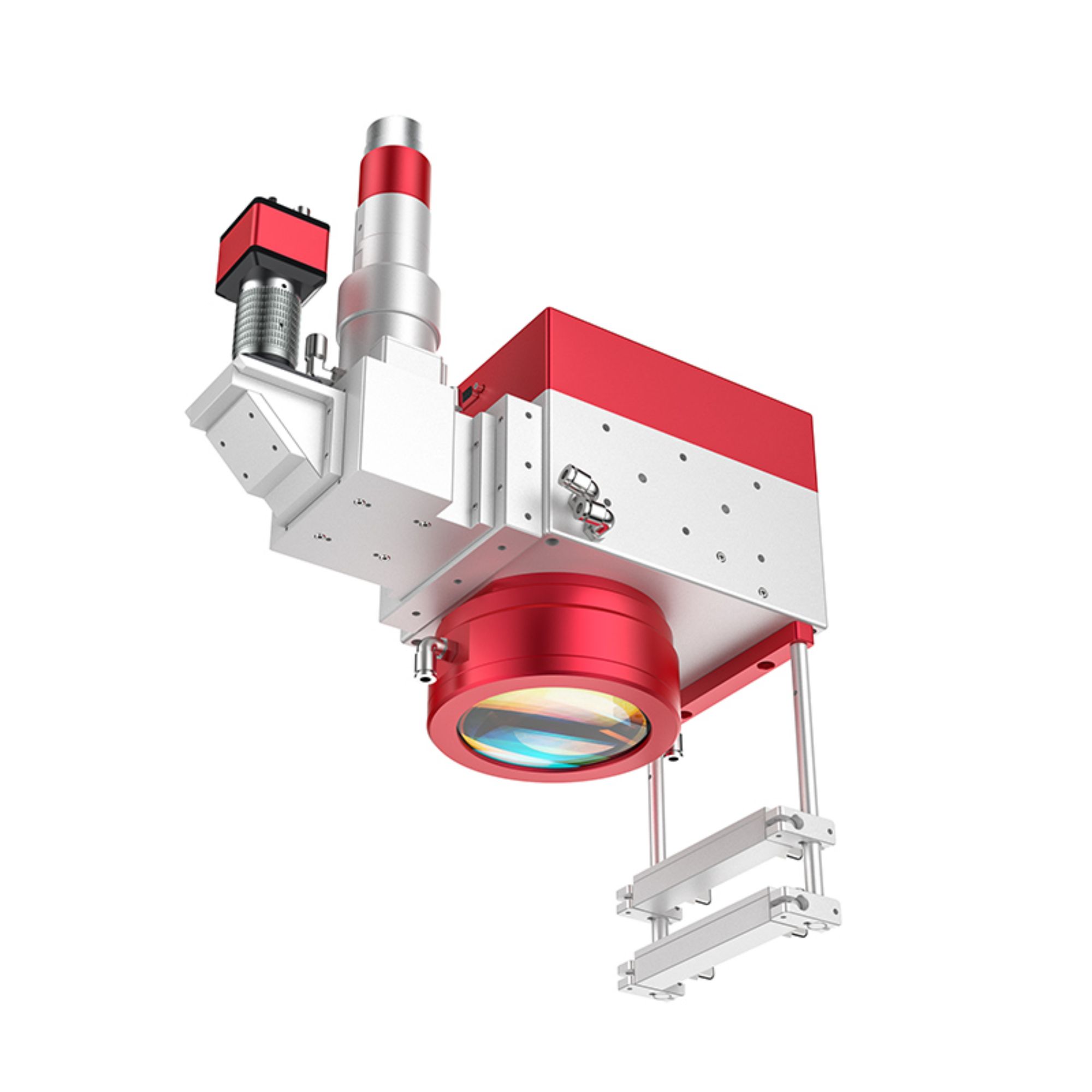

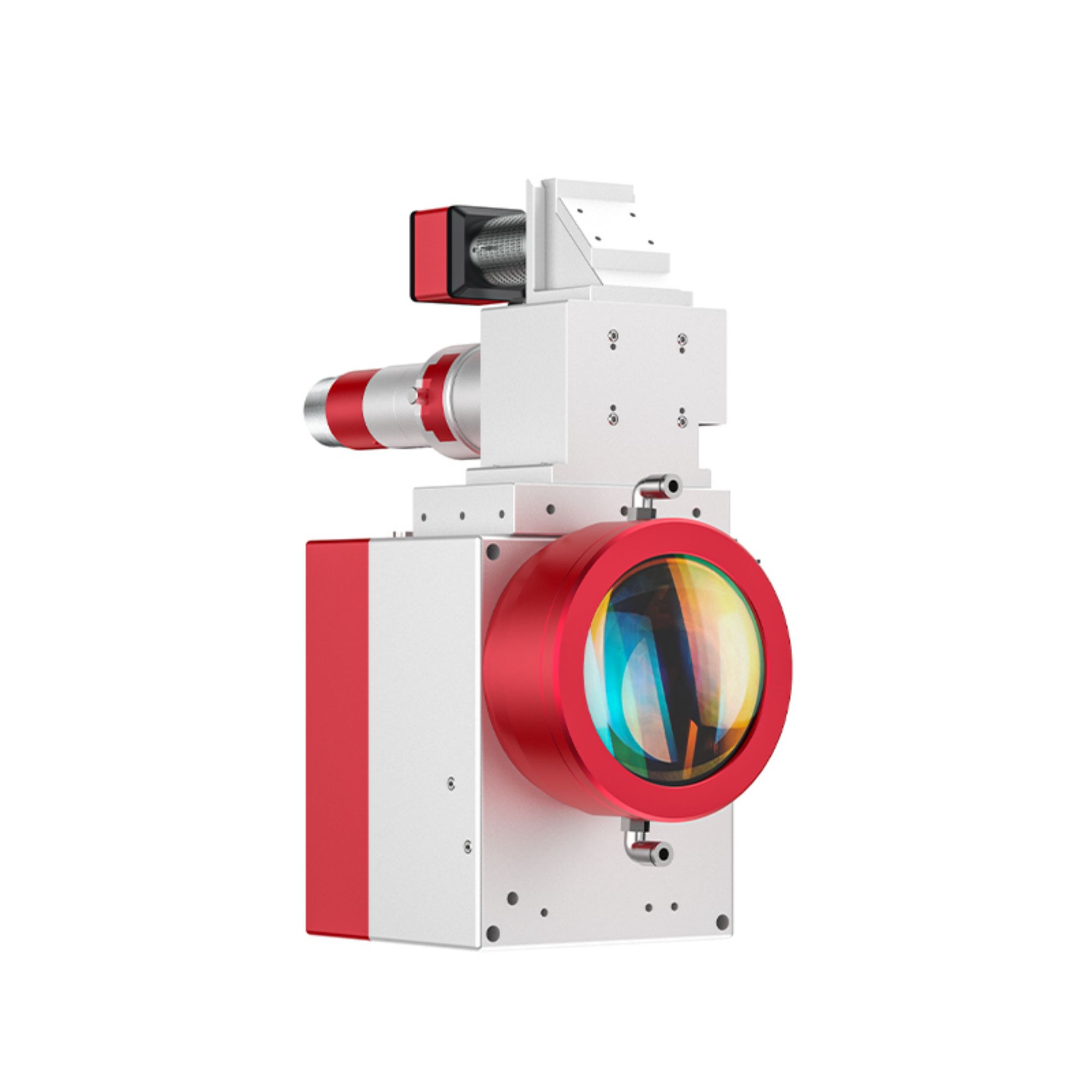

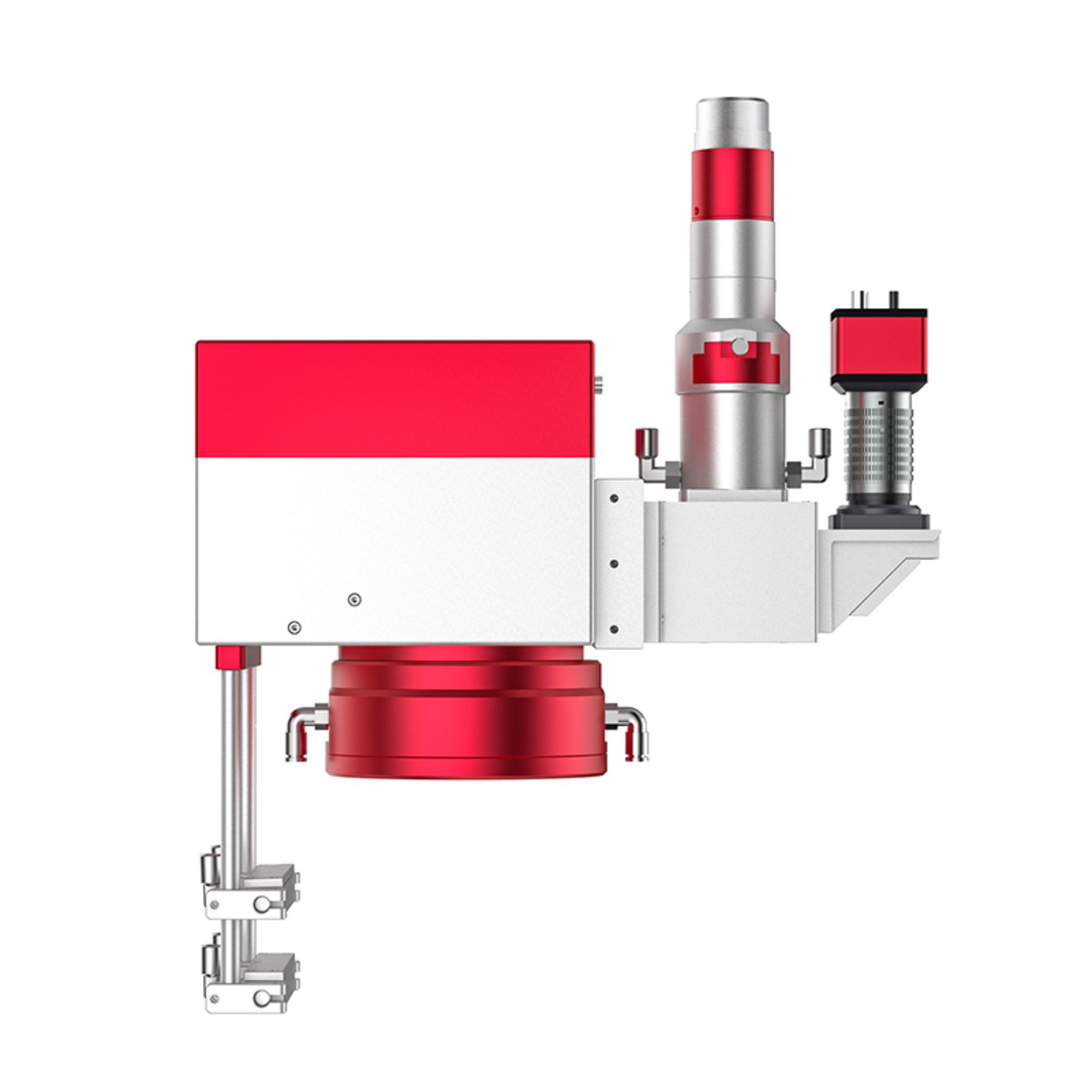

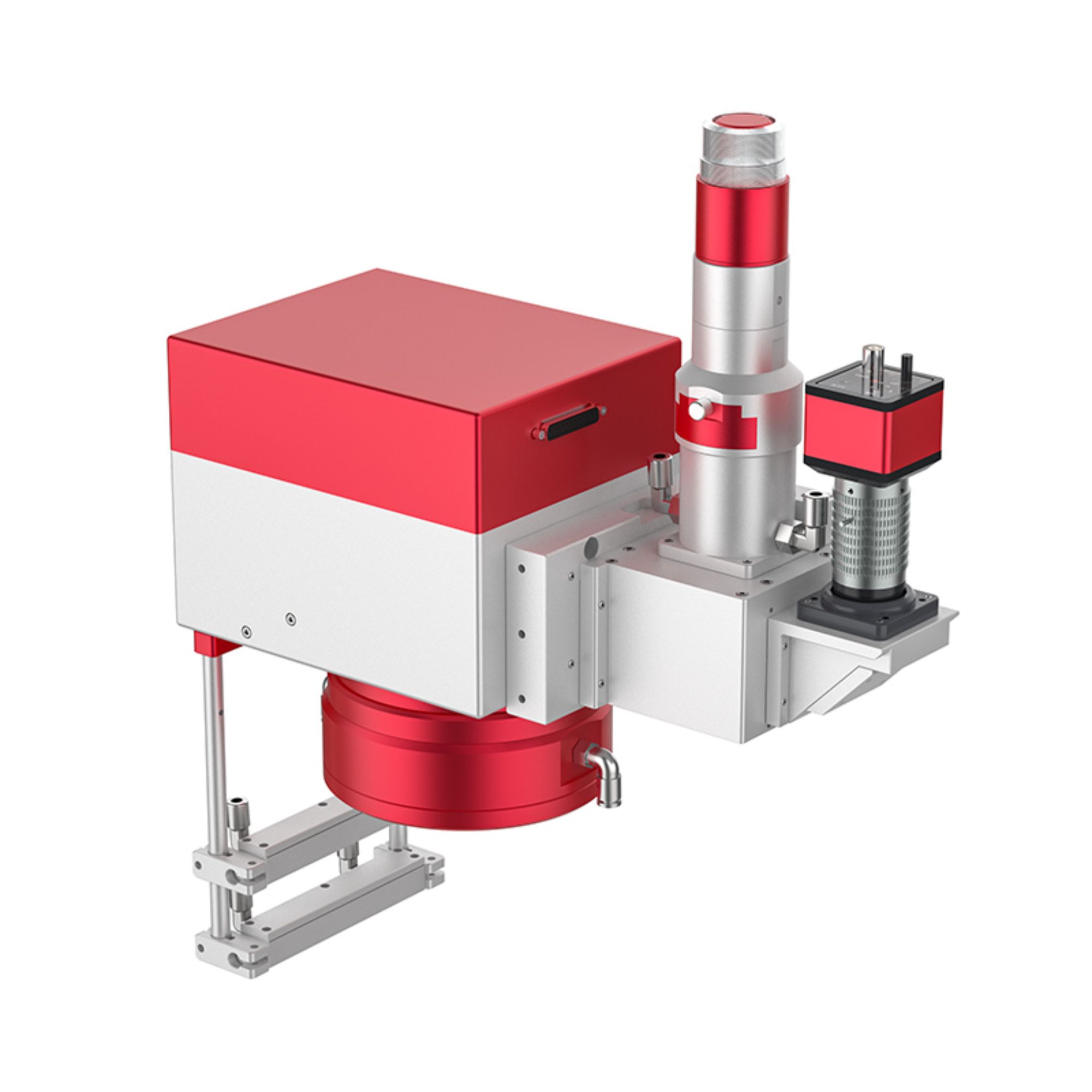

A Universall welding kit specially designed for new energy welding and high-precision spot welding, widely used in high-precision spot welding scenarios such as power battery terminals,busbars, energy storage modules, motor stators, photovoltaic modules, electronic components, sensors, connectors, and precision metal parts.
Product advantages
● High power
Adopting a high - performance core design, the maximum output power can reach 8 kilowatts, which can easily meet the requirements of high - power, high load, and high - intensity continuous welding operations in the field of new energy. It is suitable for various difficult welding conditions and has outstanding welding efficiency and capability.
● Highly reliable
The product has undergone long - term rigorous application testing in the market, with mature technology, stable performance, and industry - leading market share. It has shown stable and reliable performance in long - term industrial production and operation, and is a highly recognized mature welding solution in the market.
● High stability
The welding output is stable and controllable, with small power fluctuations and good consistency in the formation of the molten pool, effectively reducing welding defects and ensuring uniform and stable welding results every time. It can perfectly adapt to the long - term uninterrupted operation of automated production lines.
● High precision
Deeply optimized for precision welding scenarios, with precise welding point positioning, beautiful forming, and high welding accuracy, it can perfectly meet the high precision spot welding requirements of power batteries, electronic components, sensors, and other precision welding operations.
Product Parameters | ||
Input aperture |
30 mm |
|
Scan angle |
±0.35 rad |
|
Nonlinearity |
<0.5 mrad |
|
Tracking error time |
0.5 ms |
|
Repeatability |
<2 urad |
|
Gain drift |
<30 ppm/K |
|
Zero drif |
<20 urad/K |
|
8 hours warm drift |
<100 urad |
|
Welding speed |
<3 m/s |
|
Power supply |
±15V/5A |
|
Signaling protocol |
XY2-100 |
|
Collimating lens |
F100/120/150 |
|
Focusing lens |
F210/F254/F330/F420 |
|
Laser wavelength |
1030~1090 nm |
|
Operating temperature |
25±10(℃) |
|
Water-cooling |
YES |
|
Cooling water flow rate |
>1.2L/min |
|
Maximum power |
4000 W |
|
Dimension(mm) |
317x158x153 |
|
Weight |
12.9 kg |
|
|
||
