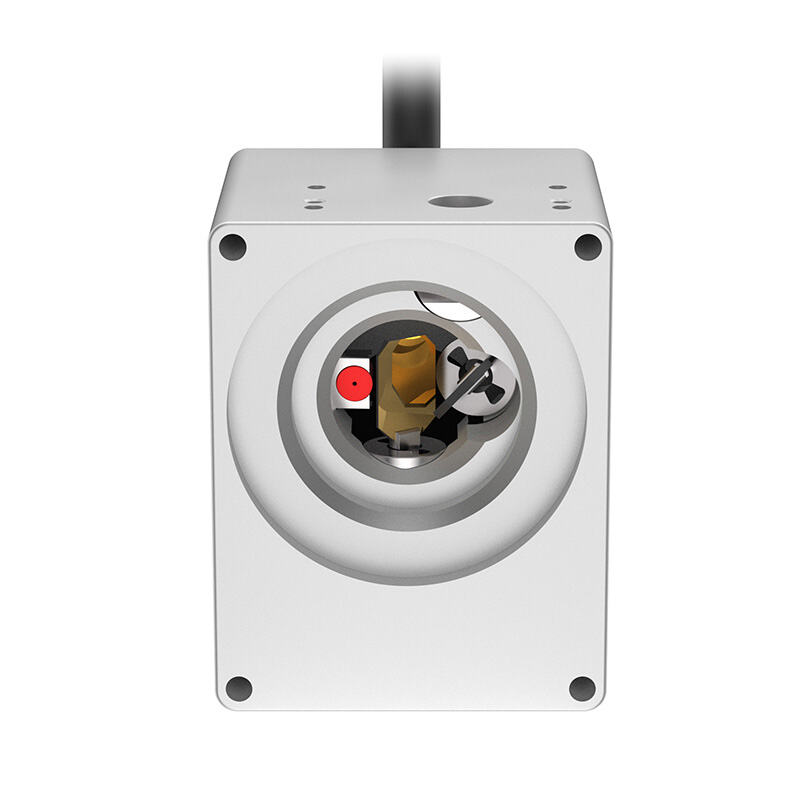

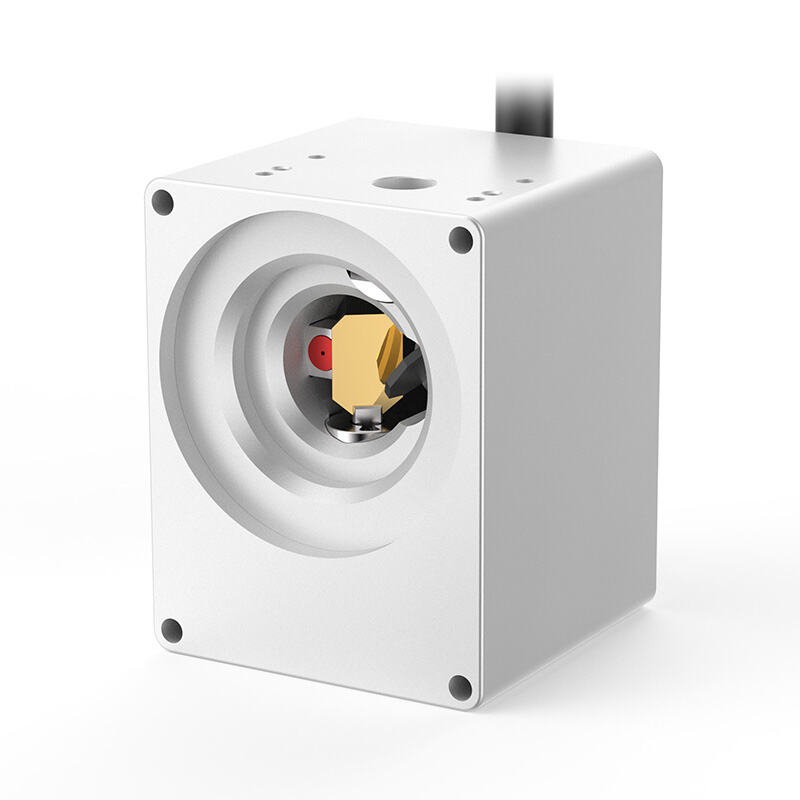

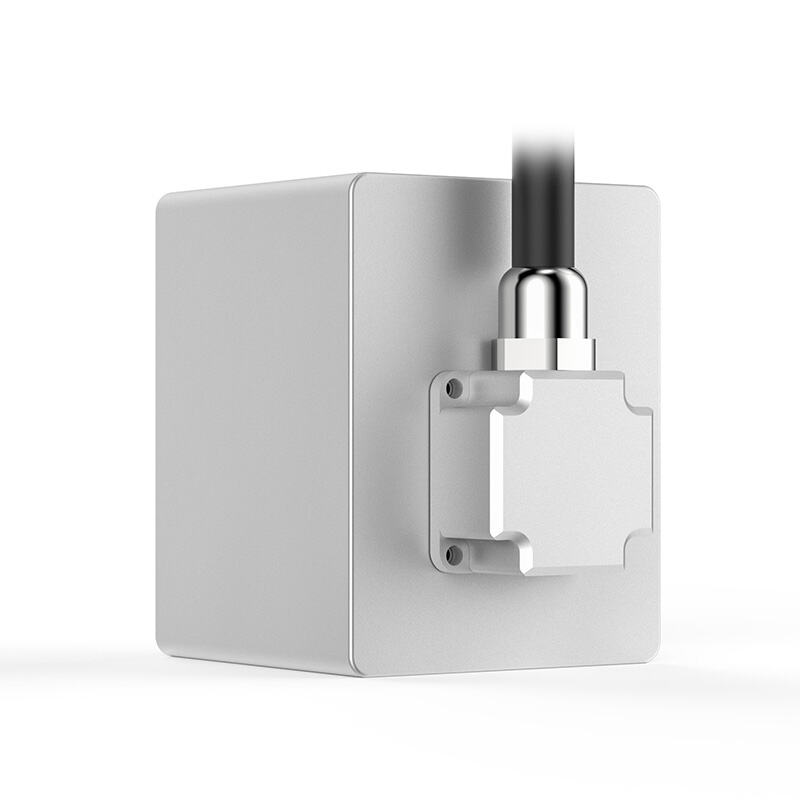

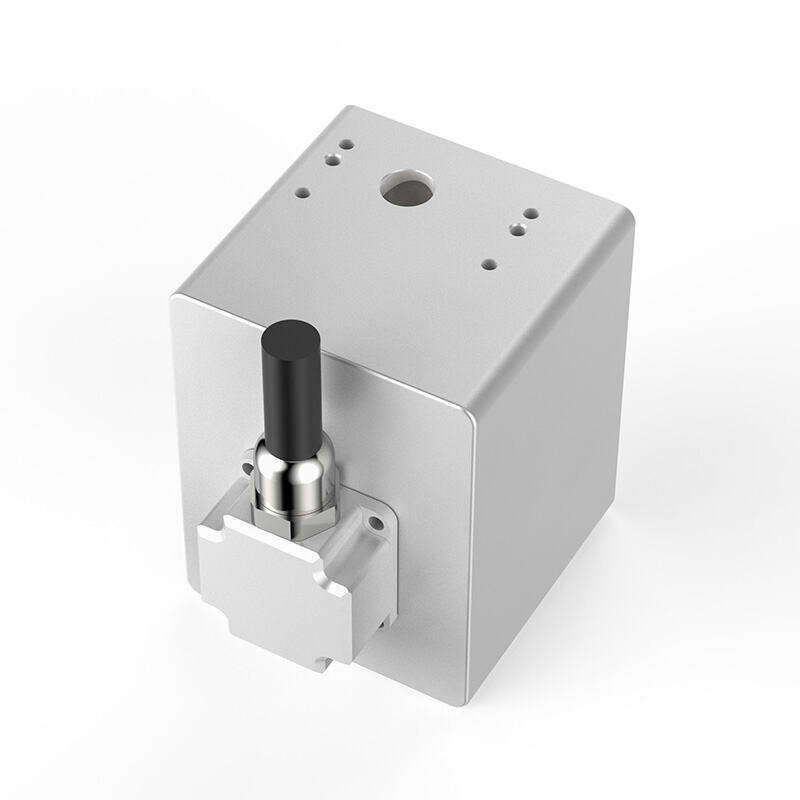

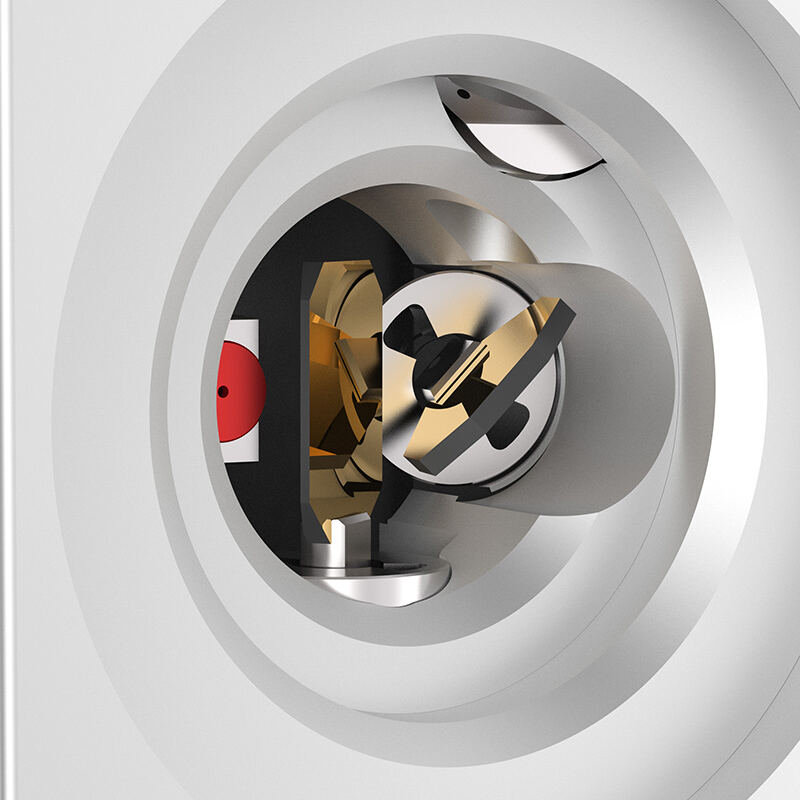

Widely used in laser marking, laser welding and other industries, it is mainly aimed at mid to low-end applications and can meet 90% of the market's general marking requirements. It is one of the most cost-effective laser scanning mirrors in the industry.
Product advantages
● Fault Alarm
When the equipment encounters a fault or abnormal condition, it will promptly issue an alarm. This feature assists users in quickly identifying and resolving issues, preventing work delays caused by malfunctions.
● One click self check
With just a gentle press, the galvanometer will enter self - checking mode, allowing for quick troubleshooting of any potential faults within the galvanometer itself.
● High precision
It boasts high Repeatability(RMS) in positioning accuracy and minimal temperature drift, coupled with high marking precision.
● High stability
After undergoing rigorous aging and quality testing, it exhibits excellent stability and is suitable for various complex working conditions.
Product Parameters | |
Input aperture |
8.5mm |
Scan angle |
±0.35rad |
Nonlinearity |
<0.5mrad |
Tracking error time |
0.15ms |
Small step long response time |
0.3ms |
Repeatability （RMS） |
<2urad |
Gain drift |
<50ppm/K |
Zero drift |
<30urad/K |
8 hour temperature drift |
<0.1mrad |
Marking speed |
<5m/s |
Positioning speed |
<15m/s |
Power supply |
±15V/3A |
Input Signal Protocol |
XY2-100 |
Laser wavelength |
355nm/532nm/1064nm/10600nm |
Operating temperature |
25±10(°C) |
Dimension（mm） |
100x79x70 |
Weight |
0.7 kg |
|
|
