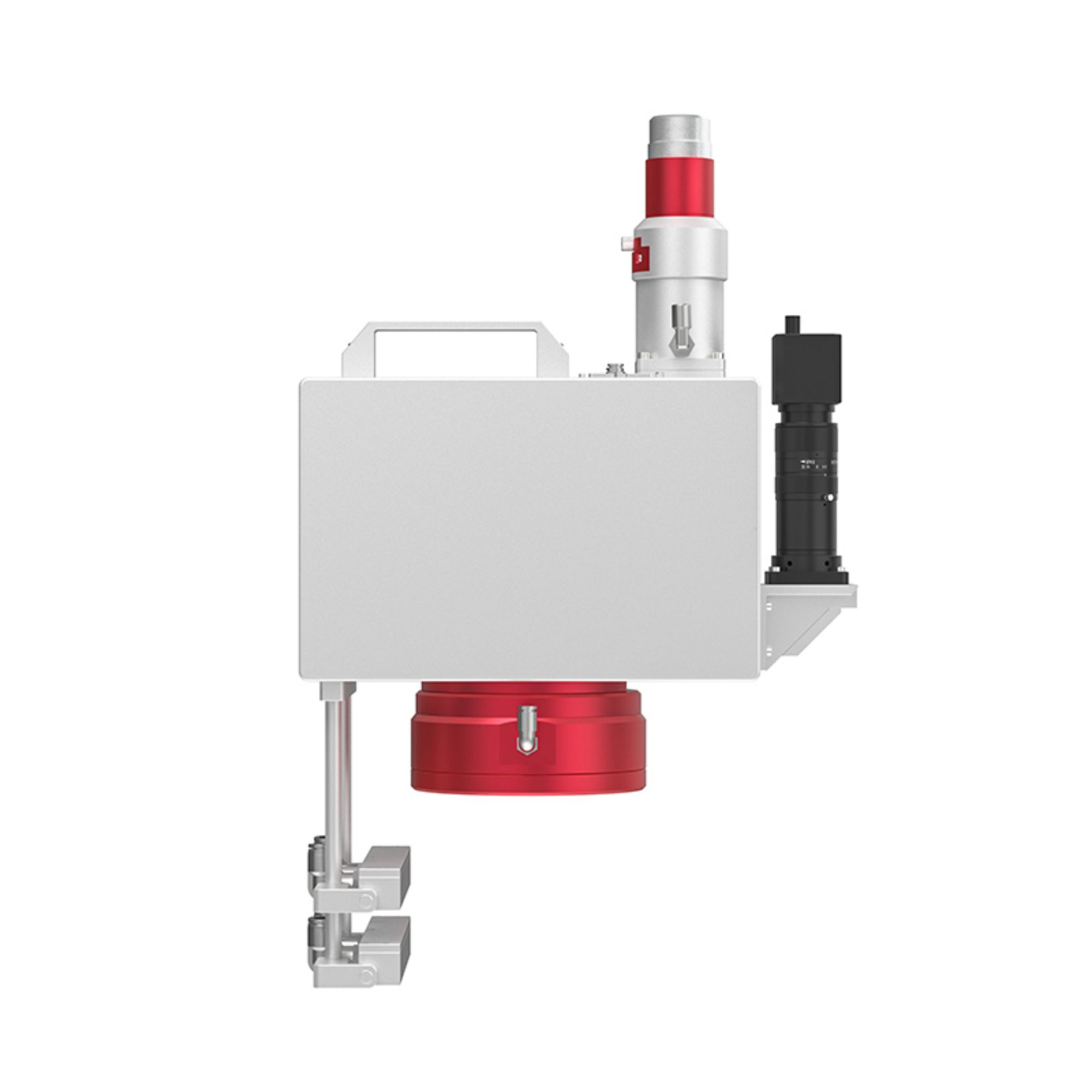

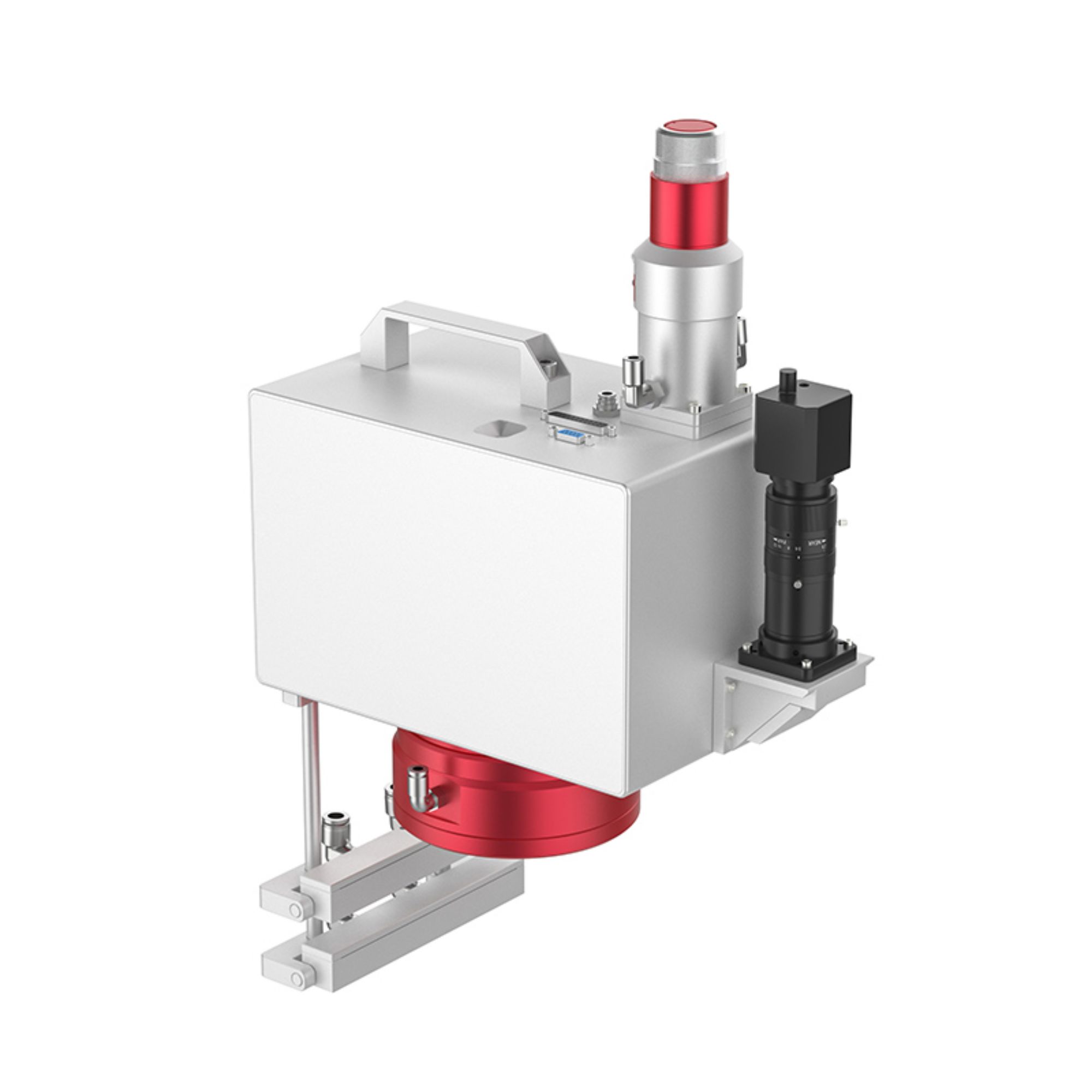

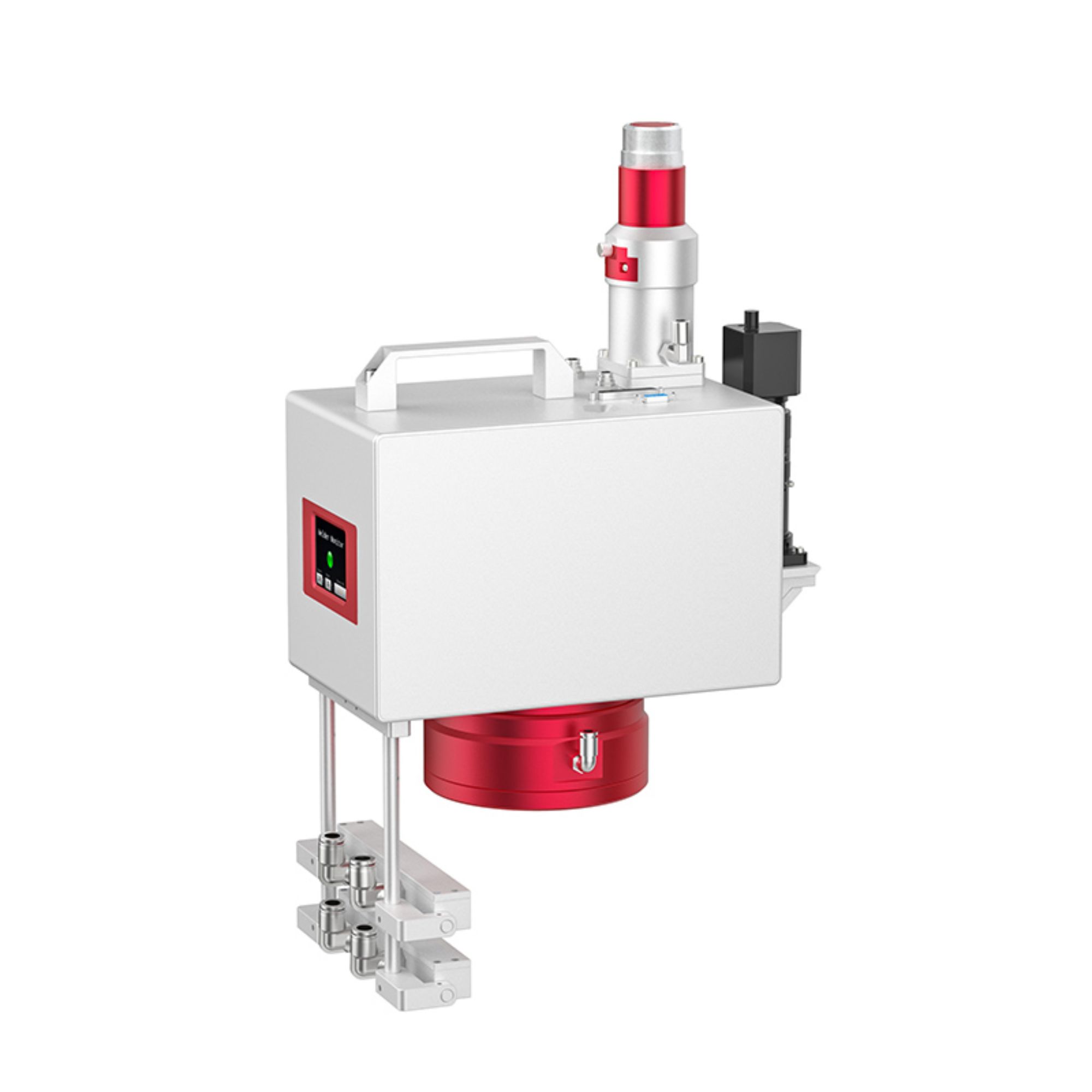

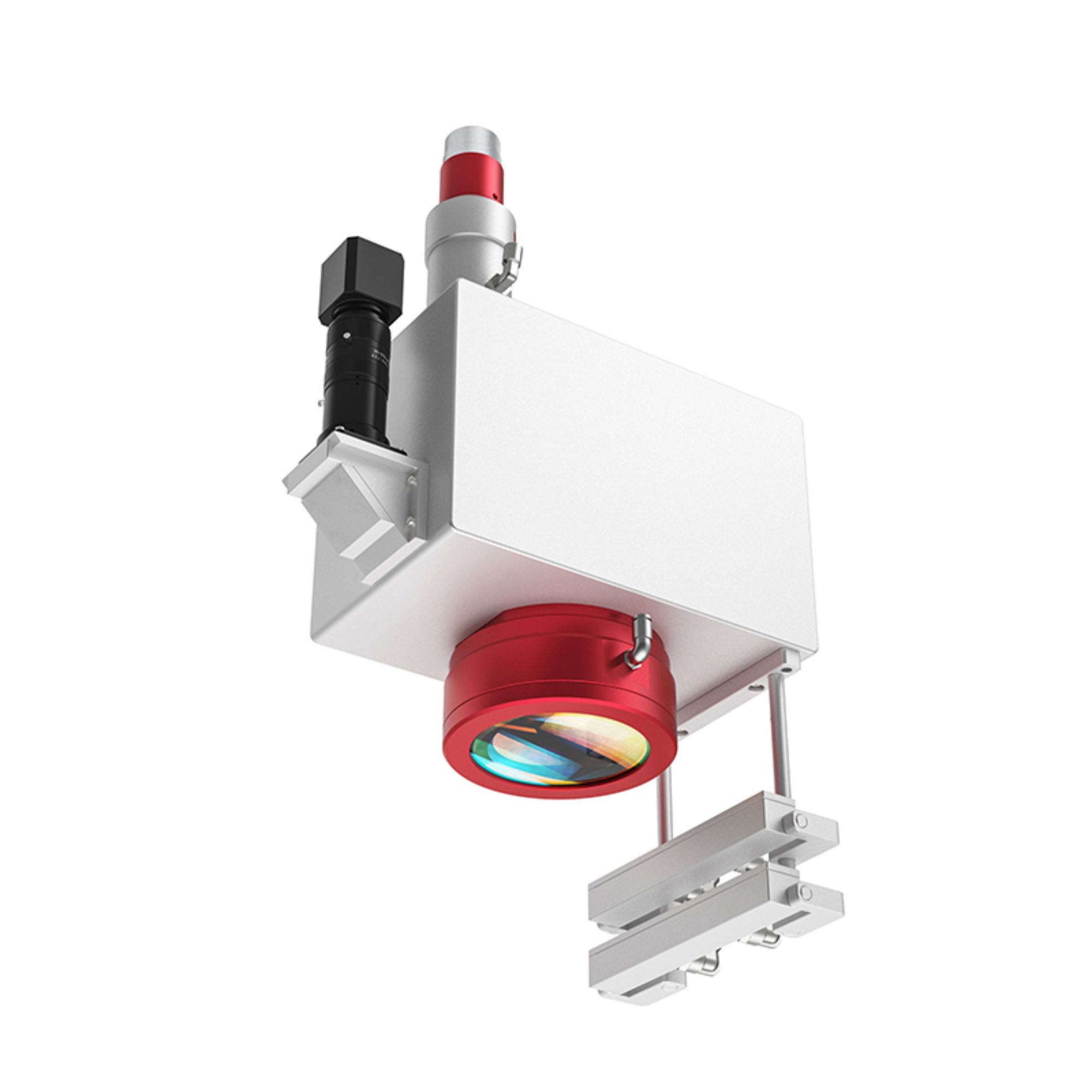

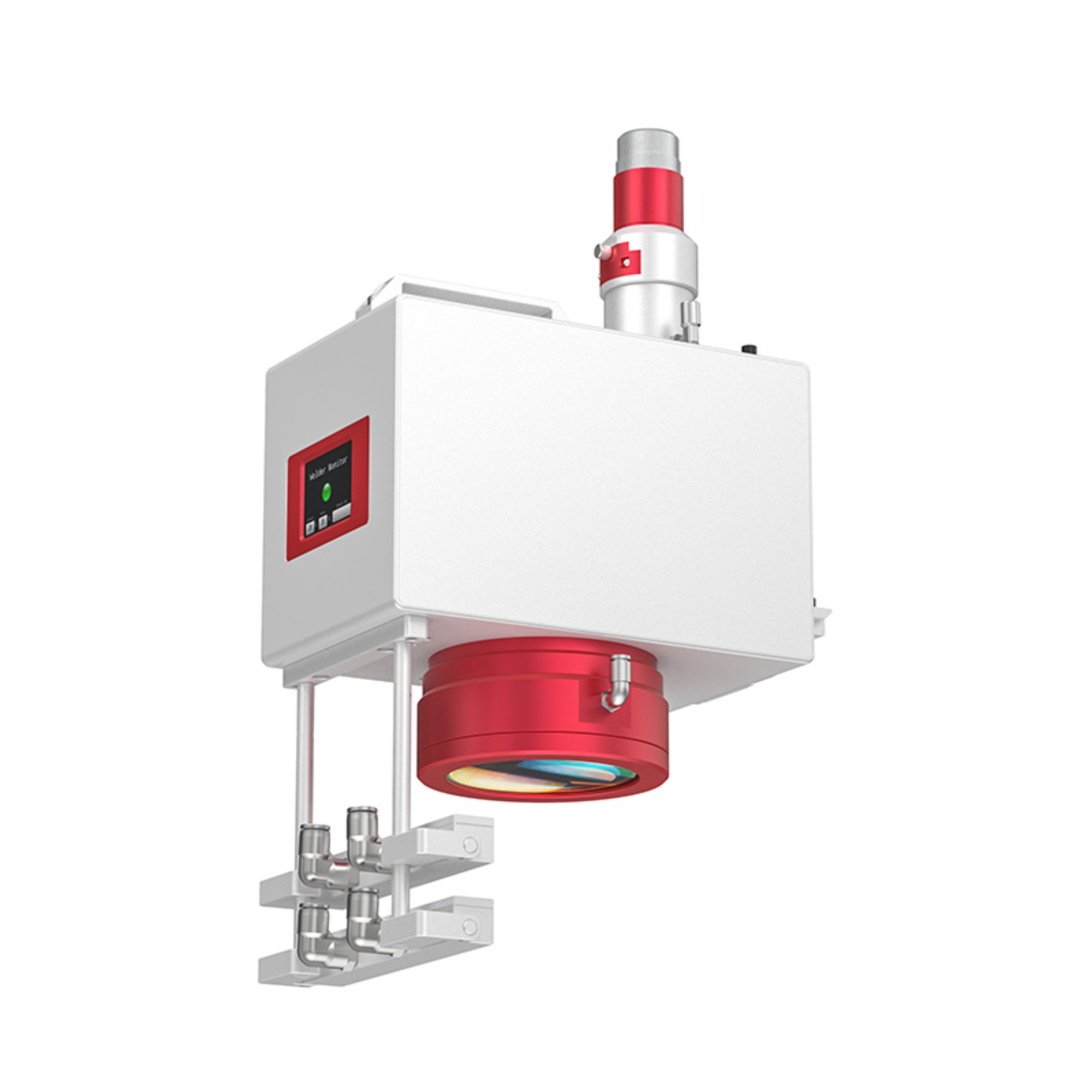

The galvo flying cleaning system is an advanced laser cleaning solution that combines high-precision galvo scanning with a multi-axis motion platform for coordinated linkage operation. It gives full play to the advantages of high precision and high efficiency of the galvo, as well as the characteristics of large travel and high flexibility of the motion platform, to achieve efficient, seamless and high-quality cleaning of large workpieces. It can be widely used in laser cleaning and rust removal of large workpieces in industries such as new energy, aerospace, rail transportation, shipbuilding, mold industry, and cultural relics protection.
Product advantages
● High power
It adopts specially customized high-power optical lens components, combined with efficient water cooling structure and multi-level temperature protection function, which can withstand up to 1000W pulse laser power.
● Large format
The galvo scanning is combined with the multi-axis motion platform for coordinated linkage operation to achieve unlimited cleaning format.
● High efficiency
It adopts high-speed galvo scanning technology and the coordinated linkage control technology of the multi-axis platform to achieve efficient and seamless continuous cleaning, greatly improving the cleaning efficiency.
● High stability
Adopting multi-level anti-interference design and multi-level closed-loop control algorithm, it can effectively resist electromagnetic interference and mechanical vibration; selecting high-grade optical materials and matching with precision coating process can minimize light loss and thermal distortion, and ensure stable and reliable beam quality; the body reaches IP6 dustproof standard and supports water cooling, ensuring long-term stable operation of the galvo without fear of harsh environmental challenges.
Product Parameters | |
Incident spot |
7-10mm |
Input aperture |
30mm |
Scan angle |
±0.35rad |
Linearity |
>99.9% |
X/Y axis tracking time |
0.55ms |
Welding speed |
10000mm/s |
Maximum power |
8000W |
X/Y Repeatability (RMS) |
<2urad |
Z Repeatability(RMS) |
<1um |
Long time drift of X/Y axis (after 30 min warm-up) |
<0. 1mrad |
Long time drift of Z axis (after 30 min warm-up) |
<2um |
Max working range and Z-axis depth |
|
Power supply |
±15V/10A |
Signal protocol |
XY2-100 |
Operating temperature |
25±10(℃) |
Storage temperature |
-10° to 60° |
Dimension（mm) |
167x182x276 |
|
|
