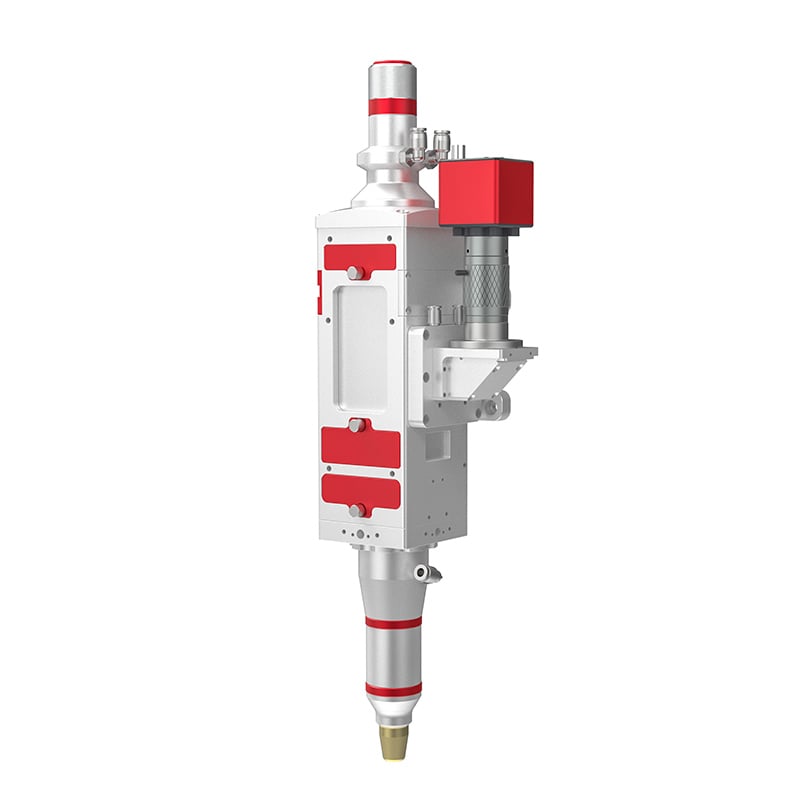

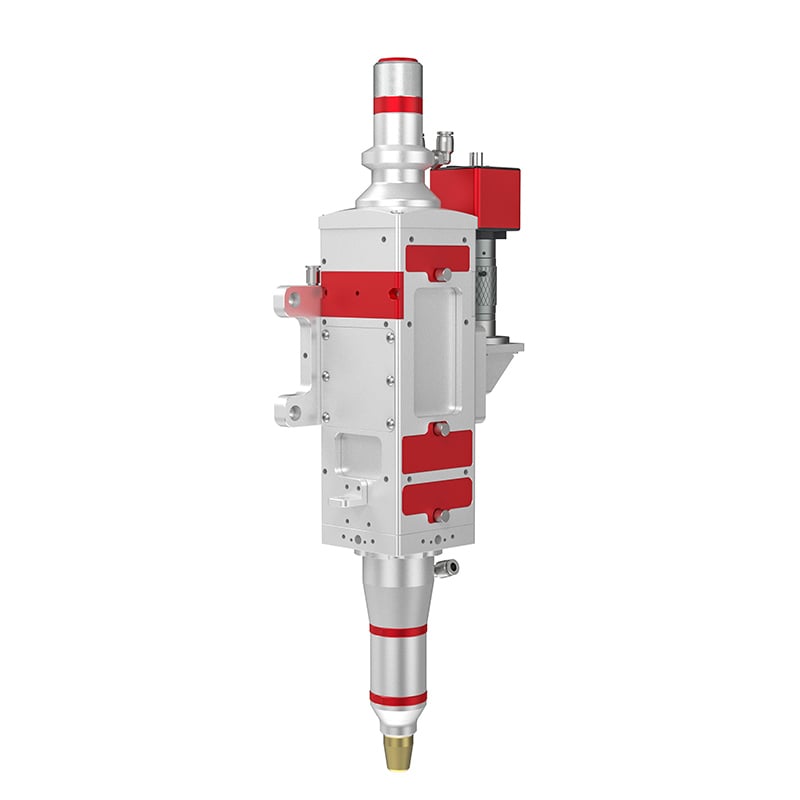

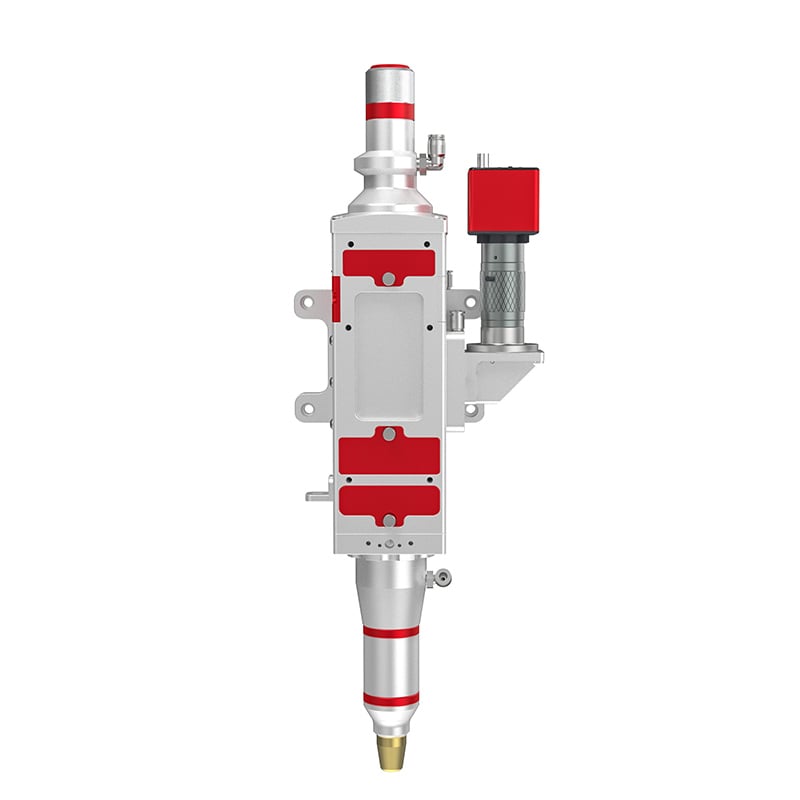

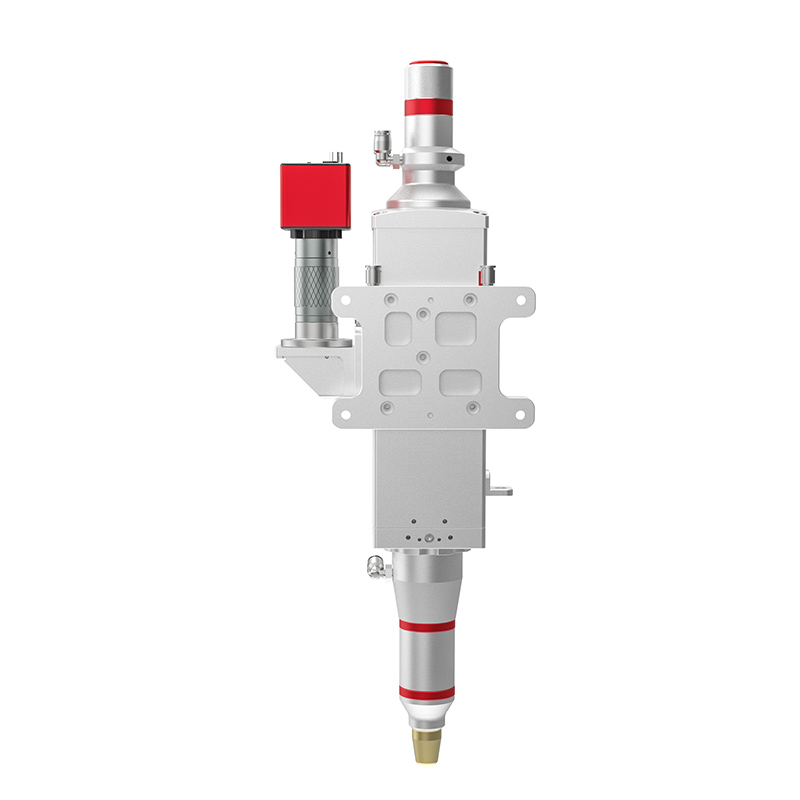

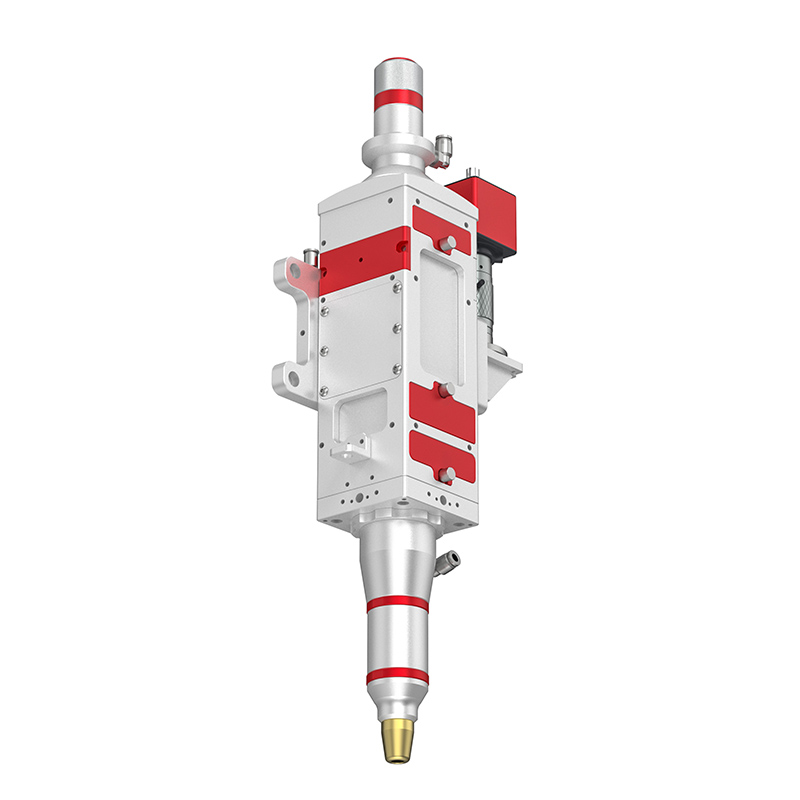

This welding head adopts high-standard optical materials and high-power multi-mode technology, which can support a maximum power of 6000W and supports annular spot and semiconductor lasers.
Product advantages
● New design
· This welding head adopts a new structural design.
· All core lenses are drawer-type design, easy to maintain.
· Integrates the latest dust-proof design concept.
· Compatible with large core diameter and annular spot.
● High cost performance
· The optical path structure is simple and easy to install.
· It has both cost-effectiveness and flexibility.
● Flexible configuration
· Flexible collimator and focusing lens ratio.

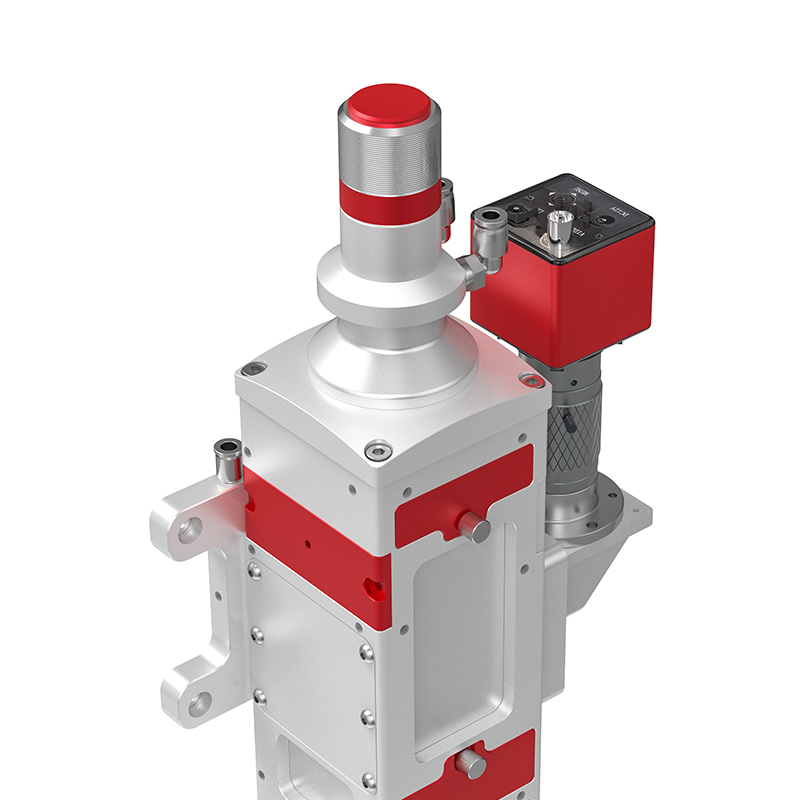

· CCD imaging module is optional, and its installation direction can be interchanged left and right.
· Supports dust-proof air curtain structure and coaxial protective blowing structure.
● High stability
· Pure optical path structure, efficient water cooling circuit, small thermal effect.
· Upper and lower layers of protective lens to protect the core lens.
Product Parameters | |
Laser interface |
QBH |
Laser wavelength |
450nm/ 915nm/ 980nm/ 1064nm |
Laser power |
≤6000W |
Focusing lens |
D50 F250/F300 |
Collimating lens |
D50 F100/F120/F150 |
Spot diameter of focusing lens |
0.05~3 mm |
Cooling method |
Water-cooling |
Gas path |
Support |
Lighting |
Side |
Welding width |
≤2 mm |
Protective gas |
Side blowing /coaxial/Air knife |
Observe CCD |
Optional |
Operating temperature |
+15℃ to +35°C |
Storage temperature |
< 80% no condensation |
Weight |
5Kg |
|
|
