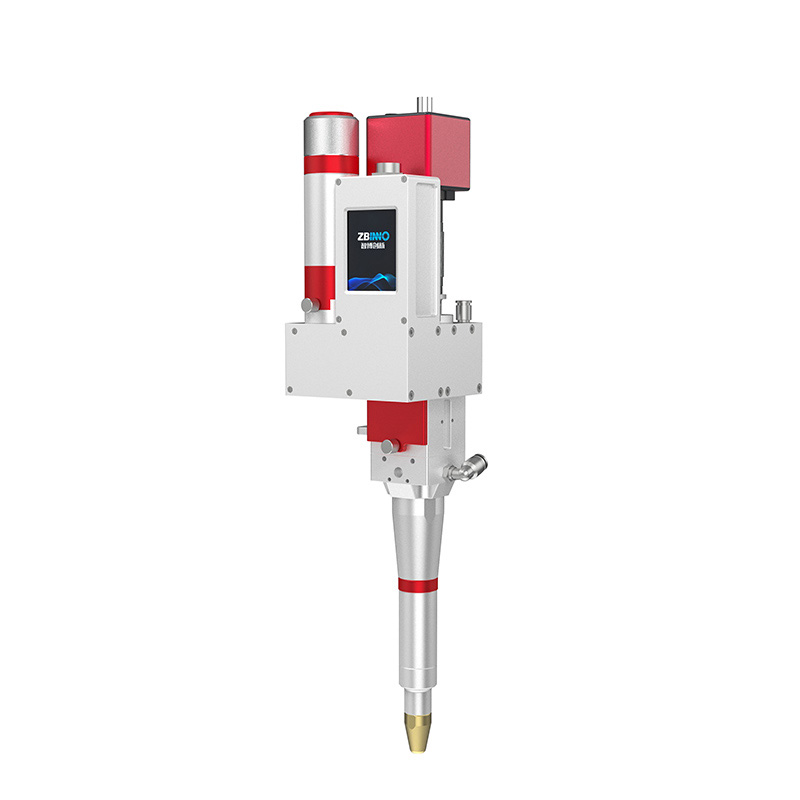

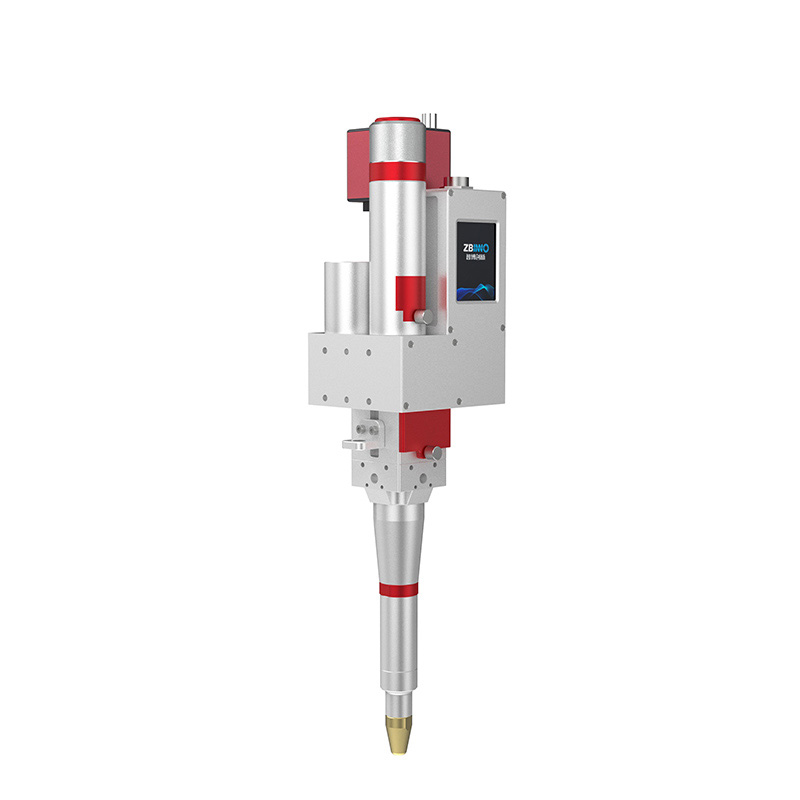

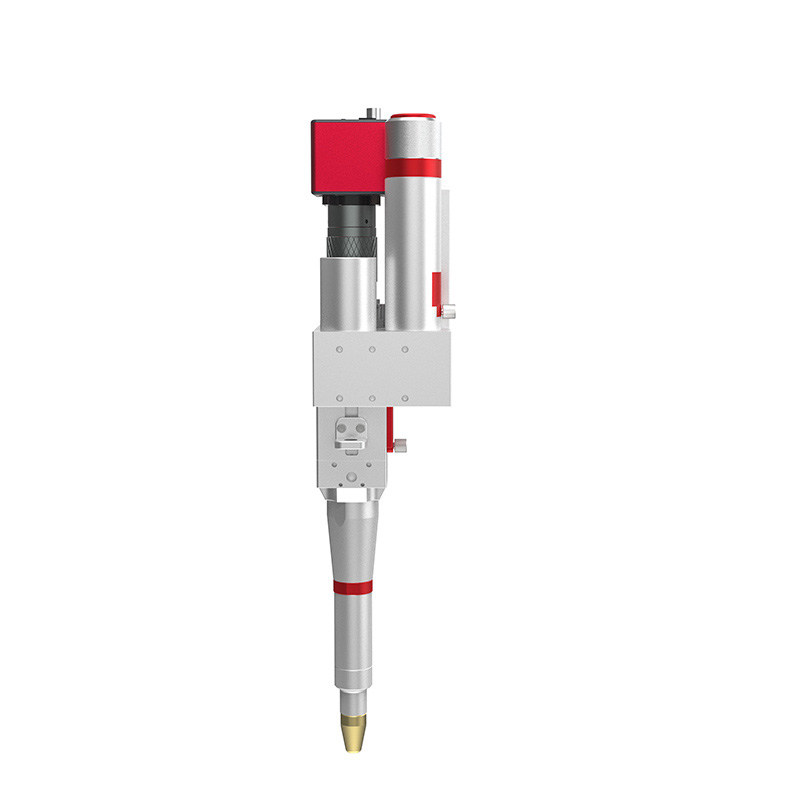

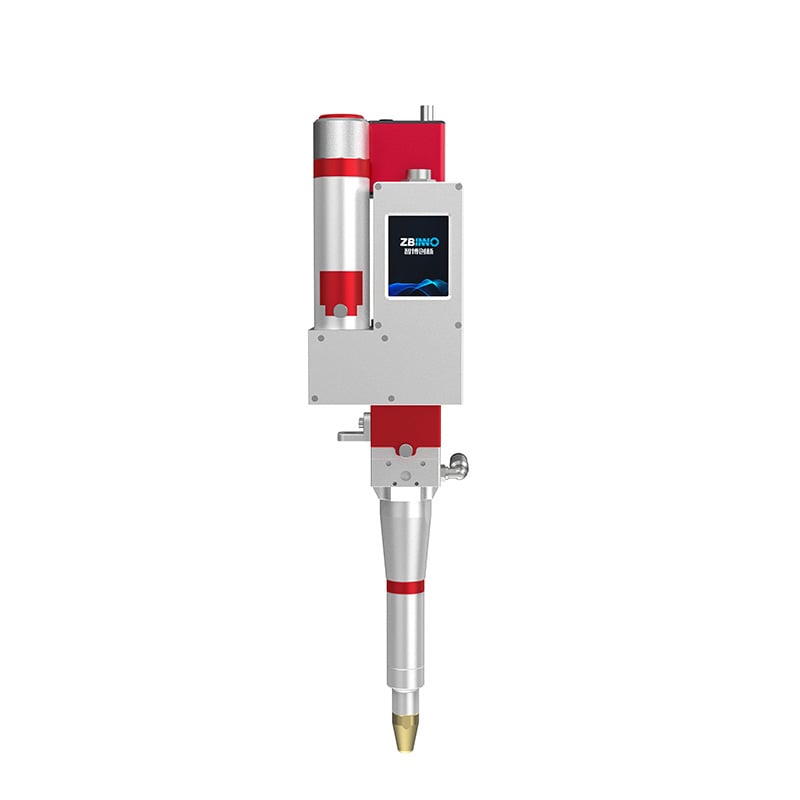

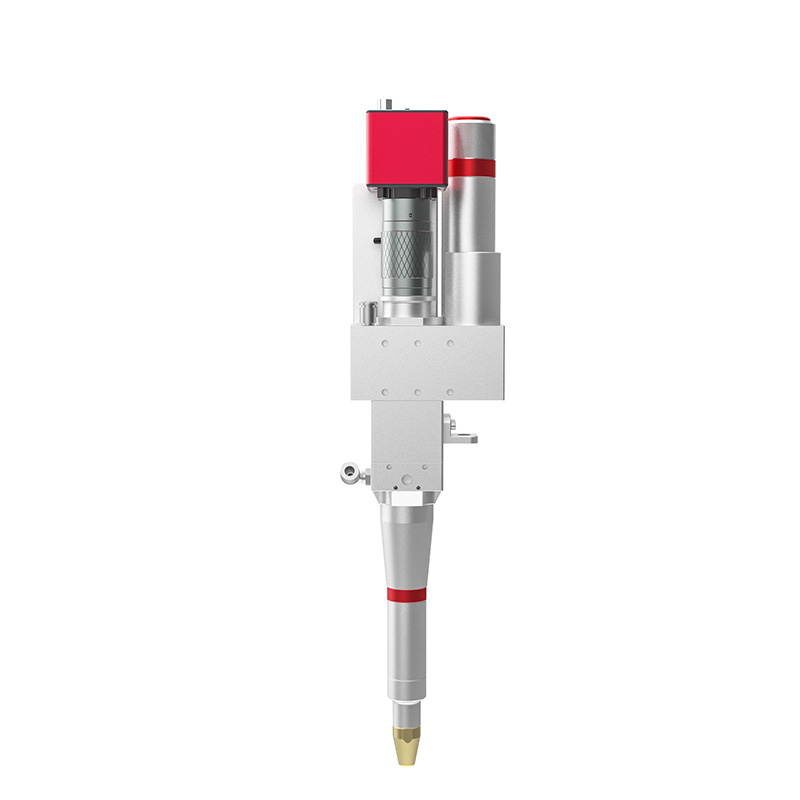

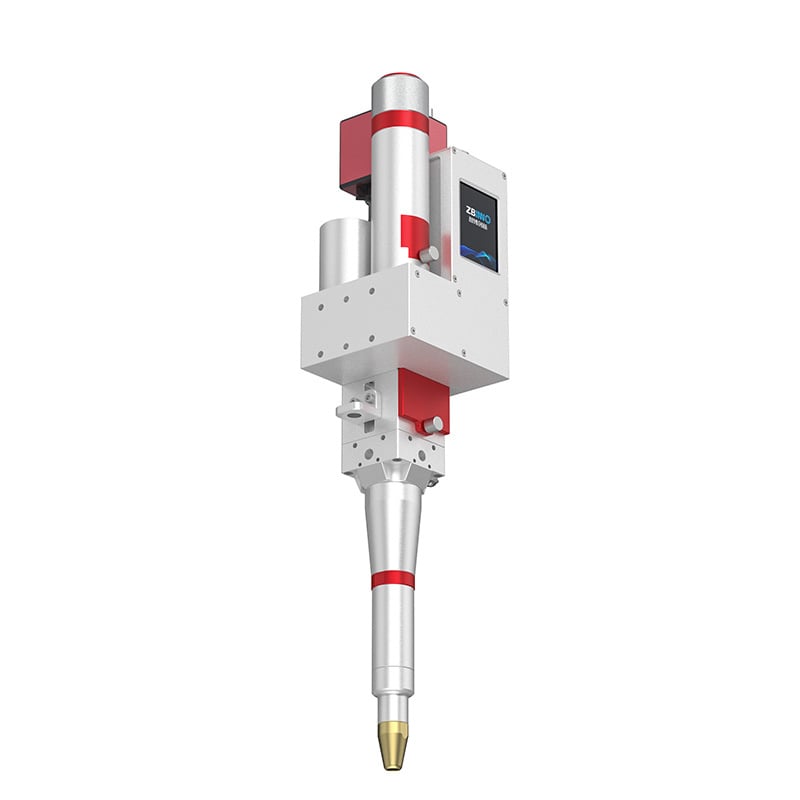

This welding head adopts a new structural design and a highly integrated drive control touch display module, which is smaller in size, lighter in weight, and more integrated. The swing mode, swing frequency, and swing width can be directly controlled through the screen. At the same time, it supports various industrial buses, which is convenient for remote control of the upper system. It is particularly suitable for automation platforms with high load requirements such as collaborative robot arms.
Product advantages
● New design
· New structural design, integrated drive and control, further optimized motor, drive and screen installation structure.
· It combines the advantages of light weight, compact structure, good sealing and strong anti-interference ability.
● Light weight
It adopts 14mm aperture, integrated drawer design for protection lens, collimator lens and focusing lens, which reduces weight and is compatible with lasers of various core diameters to the maximum extent.
● Powerful feature
· Modbus RTU bus is standard.
· Optional coaxial, air curtain, and side-axis air blowing.
· Optional fixed wire feeding bracket.
· Optional rotating wire feeding mechanism.
· 2.4-inch resistive touch screen.
· 5 scanning tracks.
Product Parameters | |
Laser interface |
QBH |
Laser wavelength |
1030nm~1090nm |
Laser power |
≤2000W |
Focusing lens |
F200/F250/F300 |
Collimating lens |
F60 |
Spot diameter of focusing lens |
0.05~0.5 mm |
Cooling method |
Water-cooling |
Gas path |
Support |
Lighting |
Side |
Welding width |
≤5 mm |
Swing frequency |
≤1000 Hz |
Swing accuracy |
0.01 mm |
Protective gas |
Side blowing /coaxial/Air knife |
Control mode |
Integrated |
Wire |
DB25 |
Anti-interference |
Strong anti-interference |
Hmi |
2.4 inch touch screen |
Laser control |
Not supported |
Automation |
Not supported |
Swing mode |
Dot/line/circle/8 |
Observe CCD |
Support |
Operating temperature |
+15℃ to +35°C |
Storage temperature |
<80% no condensation |
Weight |
1.7Kg |
|
|
