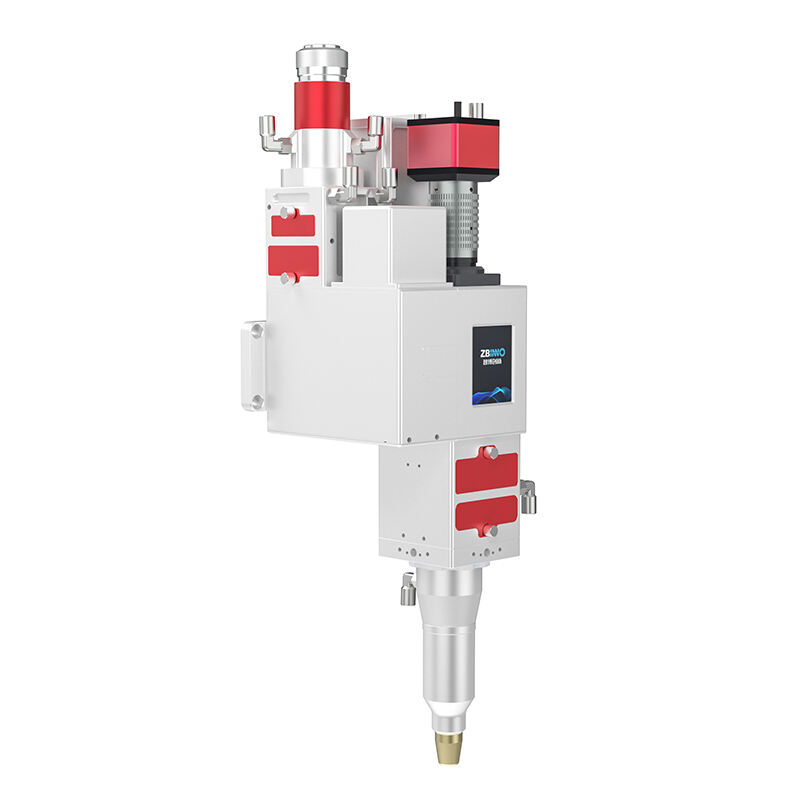

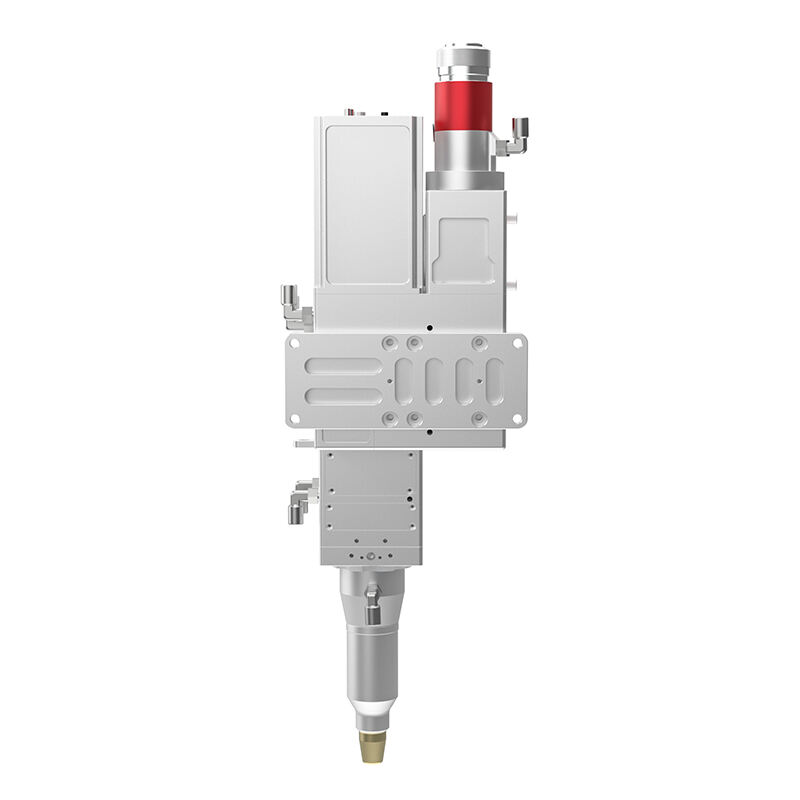

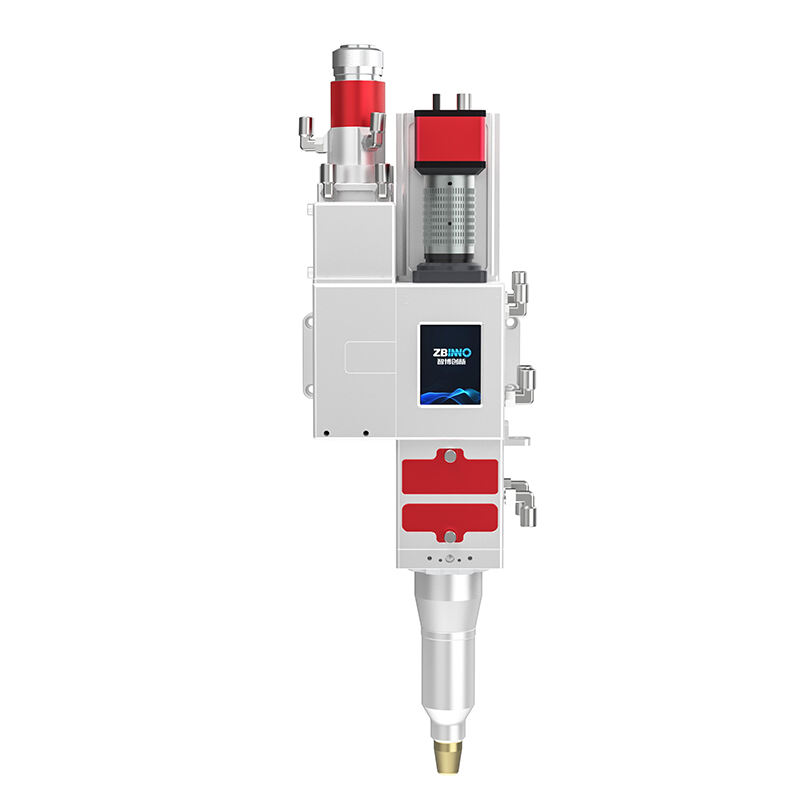

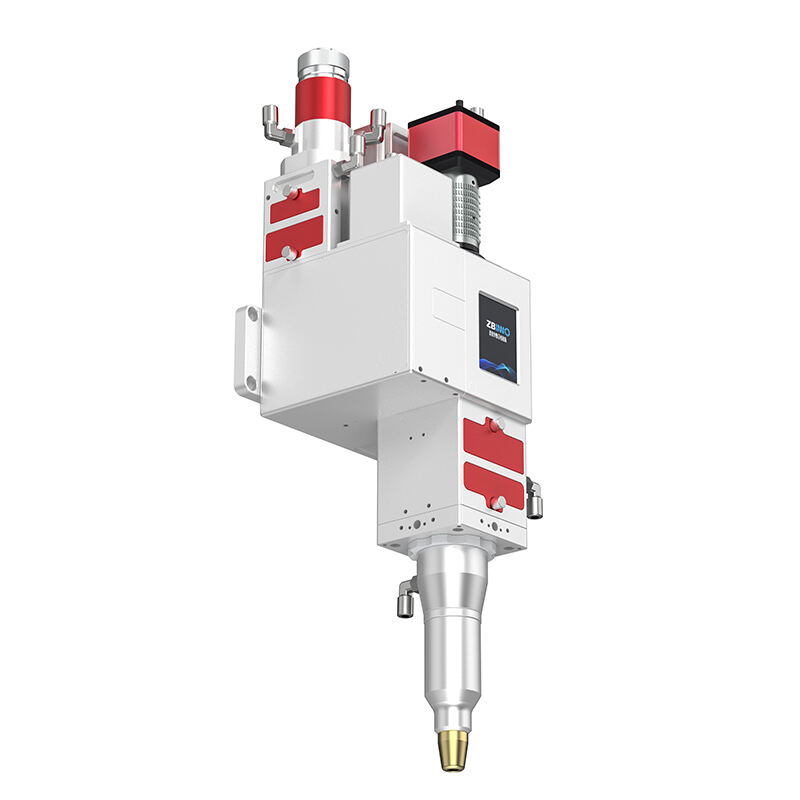

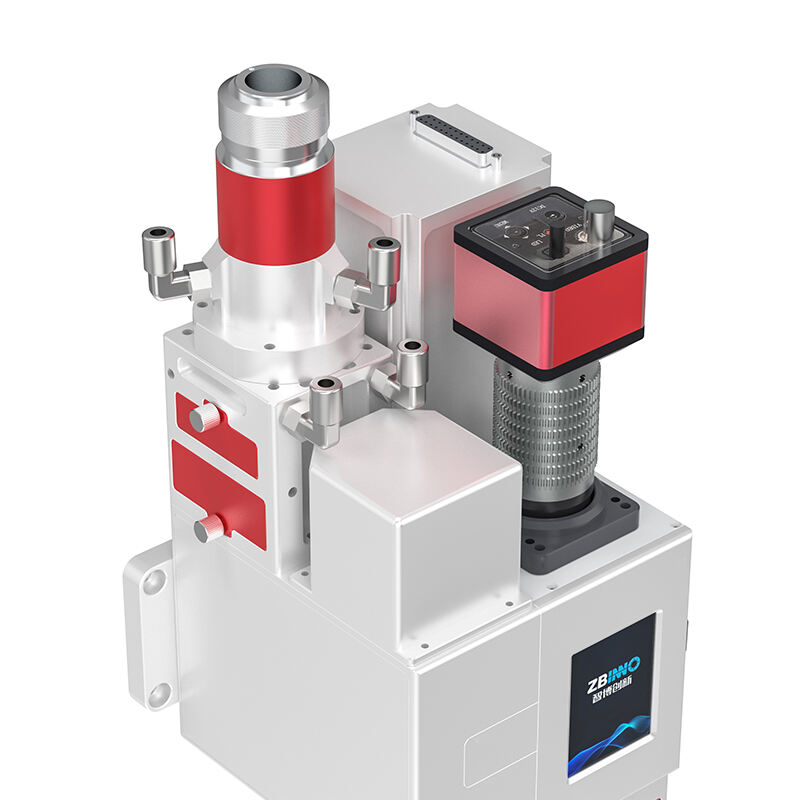

8000W Swing laser welding head SW6000-02

8000W Swing laser welding head SW6000-02

This swing welding head adopts high-standard optical materials and highpower coating technology, and an efficient water-cooling circuit design, which is suitable for full-power, long-time, and high-load application scenarios.

Inquiry
  • Overview
  • Inquiry
  • Related Products
8000W Swing laser welding head SW6000-02
8000W Swing laser welding head SW6000-02
8000W Swing laser welding head SW6000-02
8000W Swing laser welding head SW6000-02
8000W Swing laser welding head SW6000-02
8000W Swing laser welding head SW6000-02
8000W Swing laser welding head SW6000-02
8000W Swing laser welding head SW6000-02
8000W Swing laser welding head SW6000-02
8000W Swing laser welding head SW6000-02
8000W Swing laser welding head SW6000-02
8000W Swing laser welding head SW6000-02

Product advantages

● New design

 · This welding head adopts a new structural design, efficient water cooling circuit, and high-power coating process.

 · The integrated design of drive control, touch display, has strong anti-interference ability, and can meet the requirements of long-term full-power and high-load work.

● High reliability

It integrates motor drive, swing control, power control, human-machine interaction, temperature monitoring and other units. The protective mirror, focusing mirror and collimating mirror adopt drawer-type module design, which is easy to maintain.

● Powerful feature

 · Modbus RTU bus is standard, and bus modules such as ProfiNet, DeviceNet, and Modbus TCP are optional.

 ·Supports IO to retrieve process parameters, air  valve control and other functions.

 · Various scanning patterns, used with power gradient, excellent welding effect.

Product Parameters

Laser interface

QBH

Laser wavelength

1030nm~1090nm

Laser power

≤8000W

Focusing lens

D35  F100/F120/F150

Collimating lens

D50  F200/F250/F300

Spot diameter of focusing lens

0.05~1.5 mm

Cooling method

Water-cooling

Gas path

Support

Lighting

Side

Welding width

≤10 mm

Swing frequency

≤500 Hz

Swing accuracy

0.01 mm

Protective gas

Side blowing /coaxial/Air knife

Control mode

Integrated

Wire

DB25

Anti-interference

Strong anti-interference

Hmi

2.8 inch resistive touch screen

Laser control

Support

Automation

Support

Swing mode

Dot/line/circle/rectangle/8/spiral/ring shake

Observe CCD

Support

Operating temperature

+15℃ to +35°C

Storage temperature

< 80% no condensation

Weight

7.5Kg
