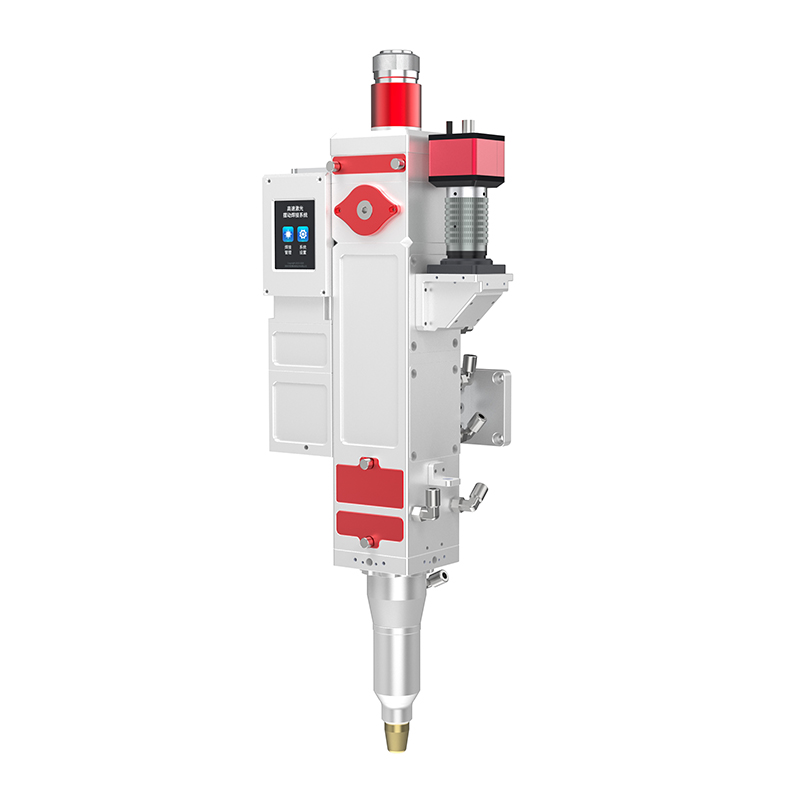

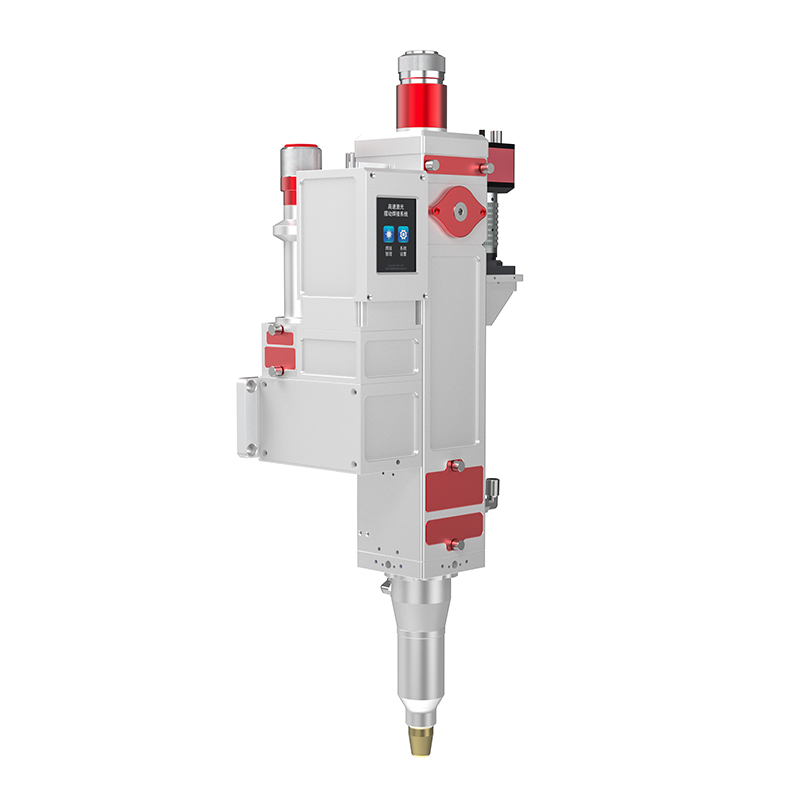

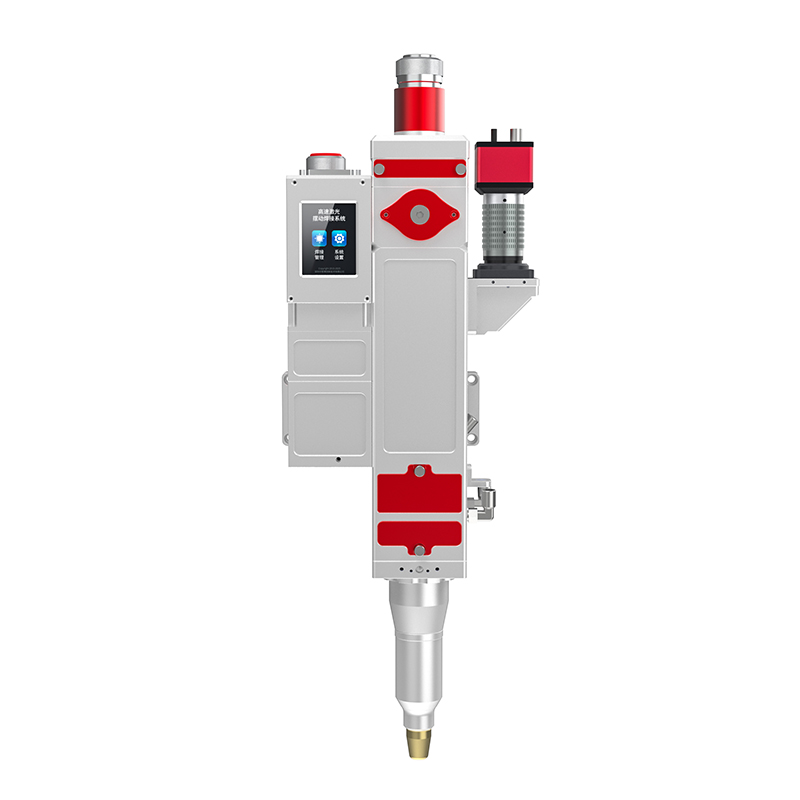

This welding head is a high-power multi-band composite oscillating welding head with an integrated design of "drive, control, touch and display". The efficient optical path design ensures a high oscillation frequency while ensuring overall transmittance. It is particularly suitable for welding highly reflective metal materials such as copper and aluminum, or welding applications with high requirements for low spatter and weld seams.
Product advantages
● Low splash
· Dual-band composite welding reduces welding spatter and sand holes, and keyhole forming is more stable;
· Supports independent adjustment of the size and power of two circles in the 8 shaped mode to further improve welding quality.
● High integration
· Integrated motor drive, swing control, power control (1064nm), humancomputer interaction, temperature monitoring and other modules.
· Standard Modbus RTU bus, optional ProfiNet, DeviceNet, Modbus TCP and other bus modes. · A variety of scanning graphics, support customization.
● High stability
The core optical path and motor both have water cooling circuits, with high overall transmittance, and can operate stably at full power for a long time.
● Easy to maintain

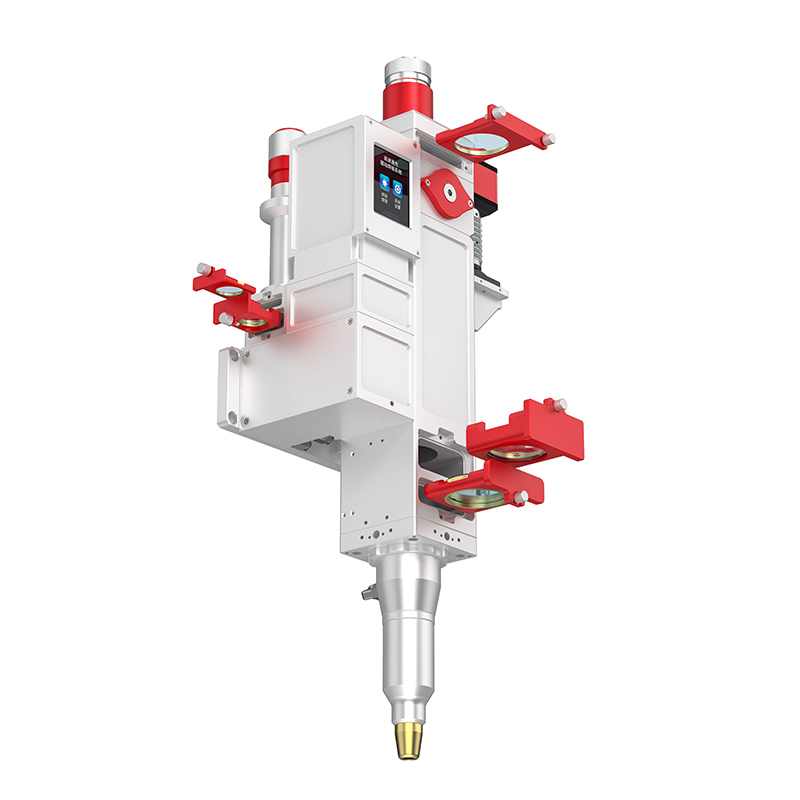

The protective lens, focusing lens and collimating lens adopt drawer-type modular design, which is more convenient for maintenance.
Product Parameters | |
Laser interface |
QBH |
Laser wavelength |
1064nm+450nm/915nm/980nm |
Laser power |
≤6000W |
Focusing lens |
D25.4 F200/F250/F300 @1064nm |
Collimating lens |
D50 F90 @915nm/980nm/450nm |
Spot diameter of focusing lens |
0.05~1.5 mm |
Cooling method |
Water-cooling |
Gas path |
Support |
Lighting |
Side |
Welding width |
≤10 mm |
Swing frequency |
≤500 Hz |
Swing accuracy |
0.01 mm |
Protective gas |
Side blowing /coaxial/Air knife |
Control mode |
Integrated |
Wire |
DB25 |
Anti-interference |
Strong anti-interference |
Hmi |
2.8 inch resistive touch screen |
Laser control |
Support |
Automation |
Support |
Swing mode |
Dot/line/circle/rectangle/8/spiral/ring shake |
Observe CCD |
Support |
Operating temperature |
+15℃ to +35°C |
Storage temperature |
< 80% no condensation |
Weight |
7.5Kg |
|
|
