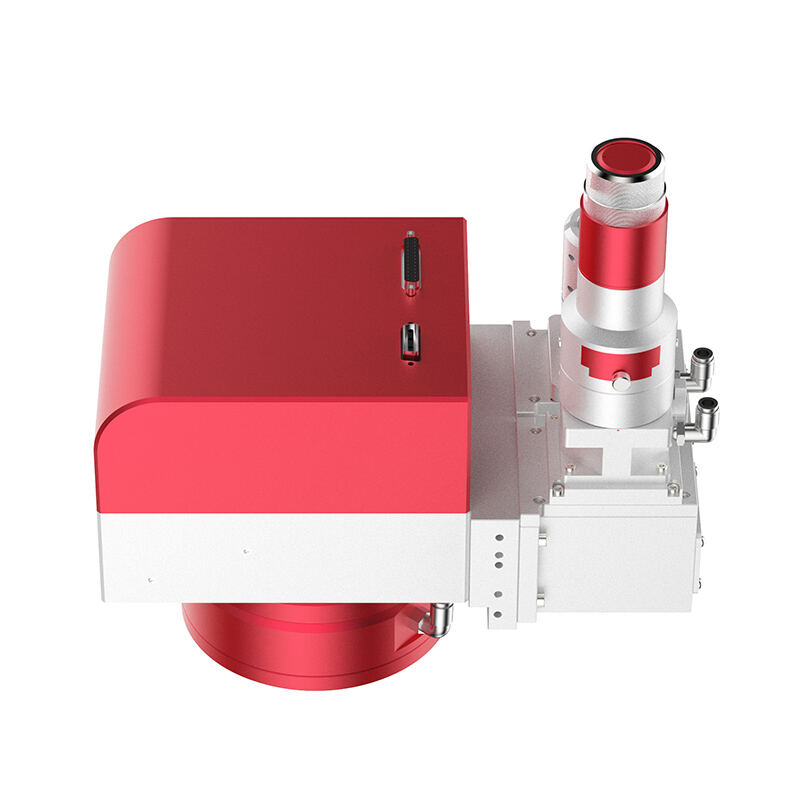

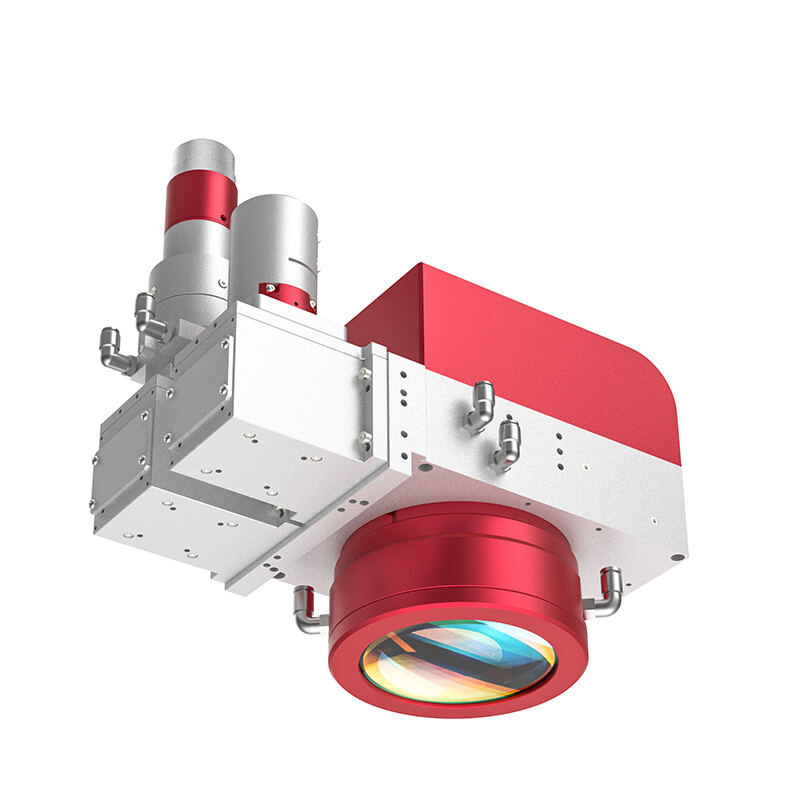

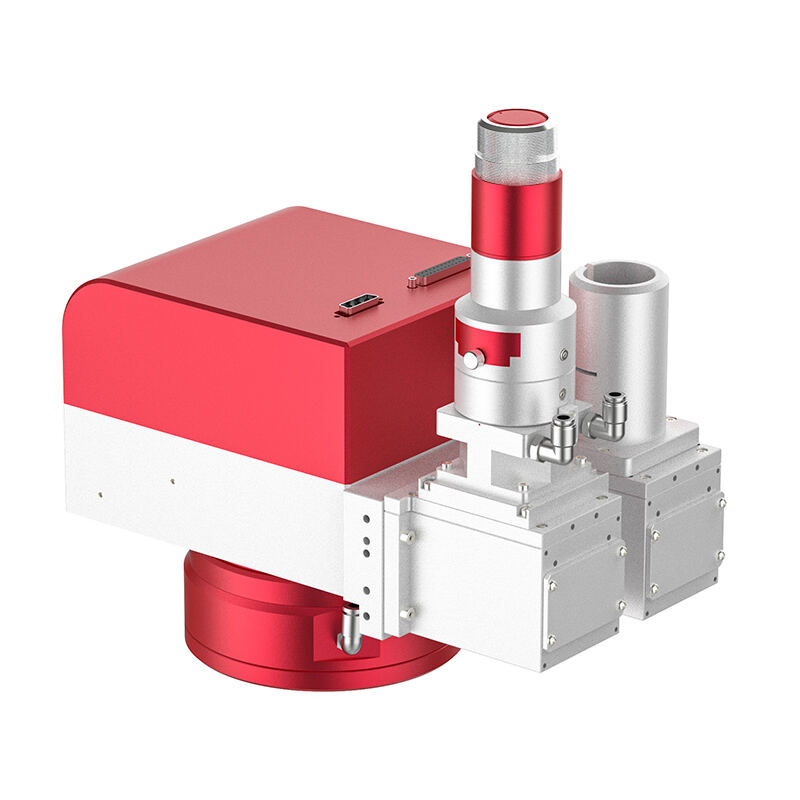

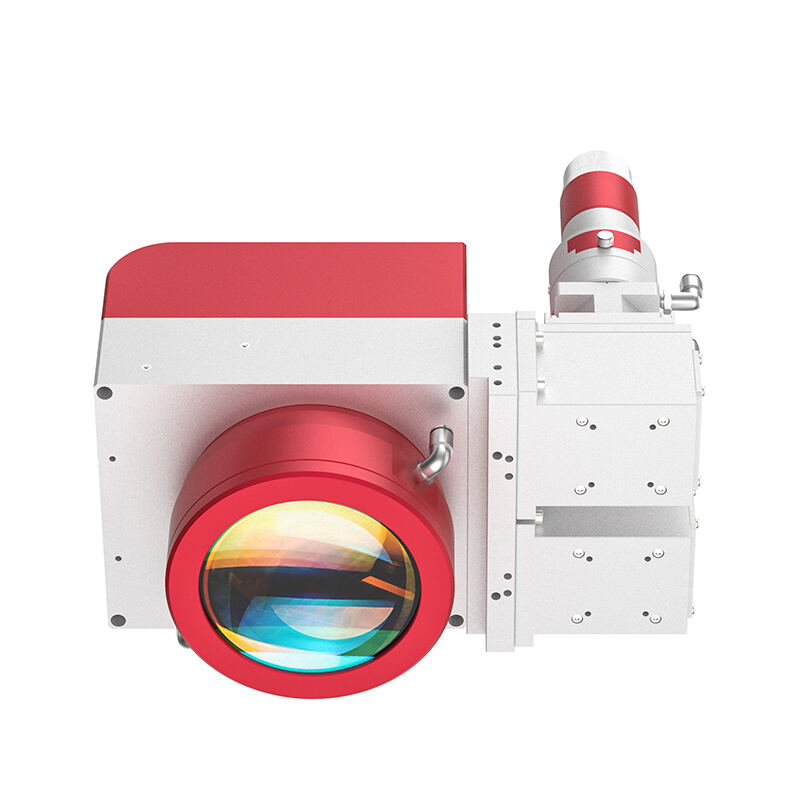

This kit is specifically designed for ultra-high-speed, high-power laser cleaning scenarios, especially for industries demanding high cleaning efficiency, such as the texturing of new energy batteries.
Product advantages
· Ultra - high speed
Equipped with a high - speed, high - power water - cooled motor and ultra - high - speed drive, it boasts fast cleaning speed and high efficiency.
· High power
Utilizing specially customized high - power optical lens components, combined with an efficient water cooling structure and multi - level temperature protection, it can stably withstand continuous laser power up to 8000W, easily tackling various stubborn stains.
· High stability
Adopting multi - level anti - interference design and multi - level closed - loop control algorithms, it effectively resists electromagnetic interference and mechanical vibration; the body meets IP6 dustproof standards, ensuring long - term stable operation of the galvanometer in harsh environments.
· High efficiency
Equipped with a high - speed, high - power water - cooled motor, high - speed driver, and efficient water - cooled field lens, it boasts fast cleaning speed and high efficiency, while ensuring the stability of system operation.
· High quality
All galvanometers undergo an ultra - long aging test of 180 hours before leaving the factory, simulating various extreme environments to ensure product stability and reliability.
Product Parameters
NAME |
ZB4DS20GW |
ZB4D30GW |
|
Laser interface |
D35 / QBH |
D35 / QBH |
|
Input aperture |
20 mm |
30 mm |
|
Scan angle |
±0.35 rad |
±0.35 rad |
|
Nonlinearity |
<0.5 mrad |
<0.5 mrad |
|
Tracking error time |
0.35 ms |
0.55 ms |
|
Repeatability |
<3 urad |
<3 urad |
|
Gain drift |
<25ppm/K |
<50ppm/K |
|
Zero drift |
<20 urad/K |
<25 urad/K |
|
8 hours warm drift |
<0.1 mrad |
<0.1 mrad |
|
Angular Velocity |
190 rad/s |
130 rad/s |
|
Laser wavelength |
1064nm |
1064nm |
|
Power supply |
±24V/14.6A |
±24V/14.6A |
|
Operating temperature |
25±10(°C) |
25±10(°C) |
|
Signal Protocol |
XY2-100 |
XY2-100 |
|
